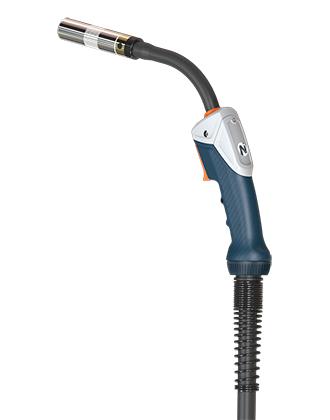

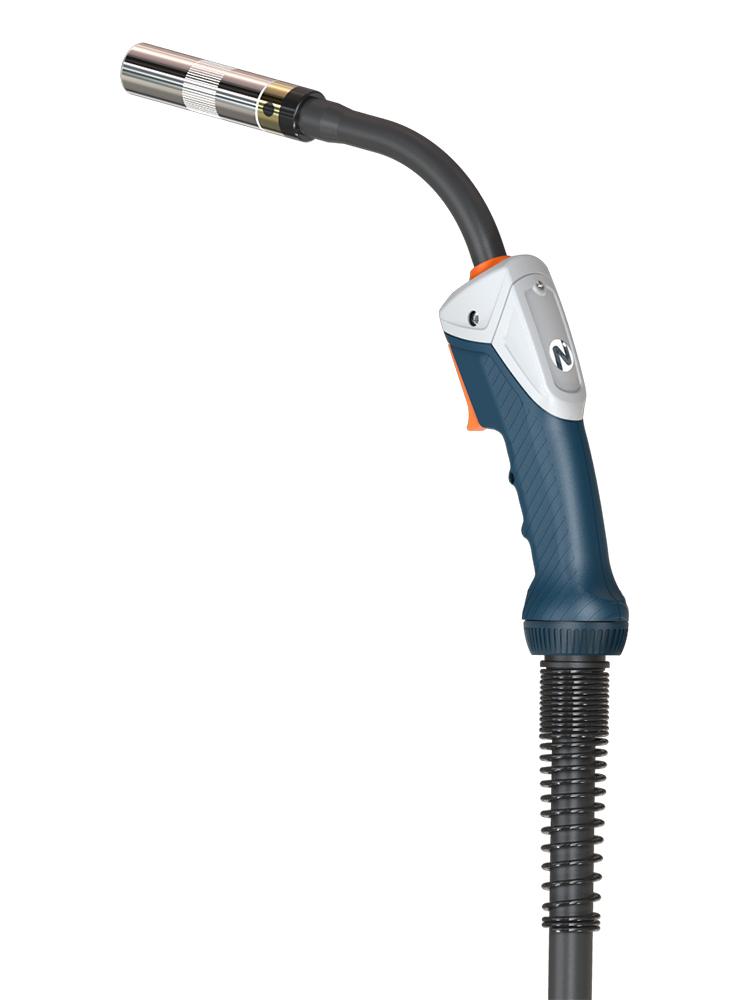

SQTB500 MIG/MAG Welding Gun
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 500A
Rating: Mixed Gas: 420A
Duty Cycle: 60%
Wire Size: 1.2-1.6
Model
| Description | Length | Part Number |
| SQTB 200 Welding Gun c/w PNA Fitting | 3M | SQTB 200-3K |
| 4M | SQTB 200-4K | |
| 5M | SQTB 200-5K |

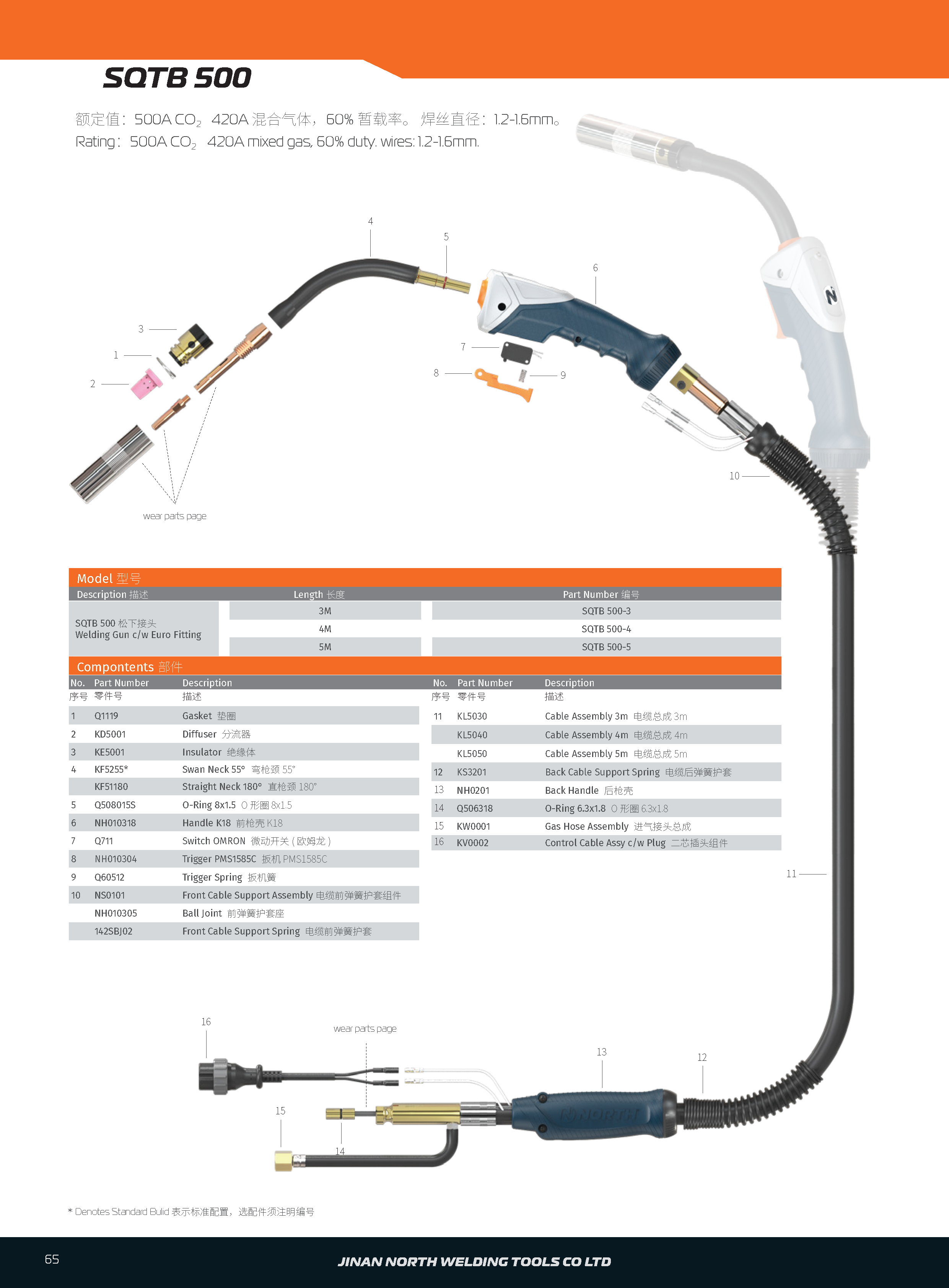

Components
| No. | Part Number | Description |
| 1 | Q1119 | Gasket |
| 2 | KD5001 | Diffuser |
| 3 | KE5001 | Insulator |
| 4 | KF5255* | Swan Neck 55° |
| KF51180 | Straight Neck 180° | |
| 5 | Q508015S | O-Ring 8x1.5 |
| 6 | NH010301 | Torch Handle R |
| NH010302 | Torch Handle L | |
| 6a | NH010205 | PCB Holder |
| 6b | NH010303 | Front Cover |
| 6c | NH010207 | Adaptor |
| 6d | NH010208 | Locking Nut |
| 7 | Q711 | Switch OMRON |
| 8 | NH010304 | Trigger PMS1585C |
| 9 | Q60512 | Trigger Spring |
| 10 | NH010305 | Ball Joint |
| 11 | 142SBJ02 | Front Cable Support Spring |
| 12 | KL5030 | Cable Assembly 3m |
| KL5040 | Cable Assembly 4m | |
| KL5050 | Cable Assembly 5m | |
| 13 | KS3201 | Back Cable Supprt Spring |
| 14 | NH020103 | Locking Nut |
| 15 | NH020101 | Back Handle R |
| NH020102 | Back Handle L | |
| 16 | Q506318 | O-Ring 6.3x1.8 |
| 17 | KW0001 | Gas Hose Assembly |
| 18 | KV0002 | Control Cable Assy c/w Plug |
*Must indicate part number for clear model classification.
