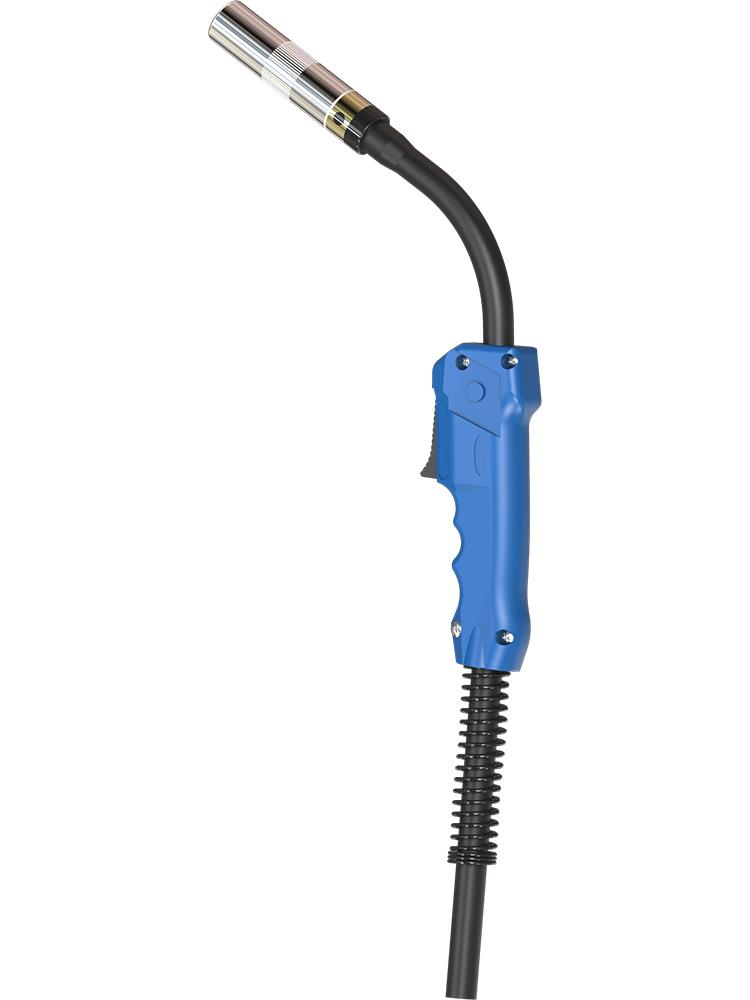

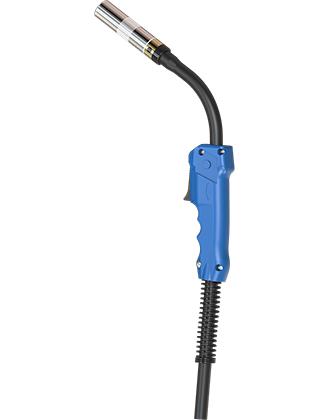

QTB- 500A, MIG/MAG Welding Gun
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 500A
Rating: Mixed Gas: 420A
Duty Cycle:60%
Wire Size: 1.2-1.6
Order Part No.
| OTC FITTING | 3M | ND-500D-3 |
| 4M | ND-500D-4 | |
| 5M | ND-500D-5 |

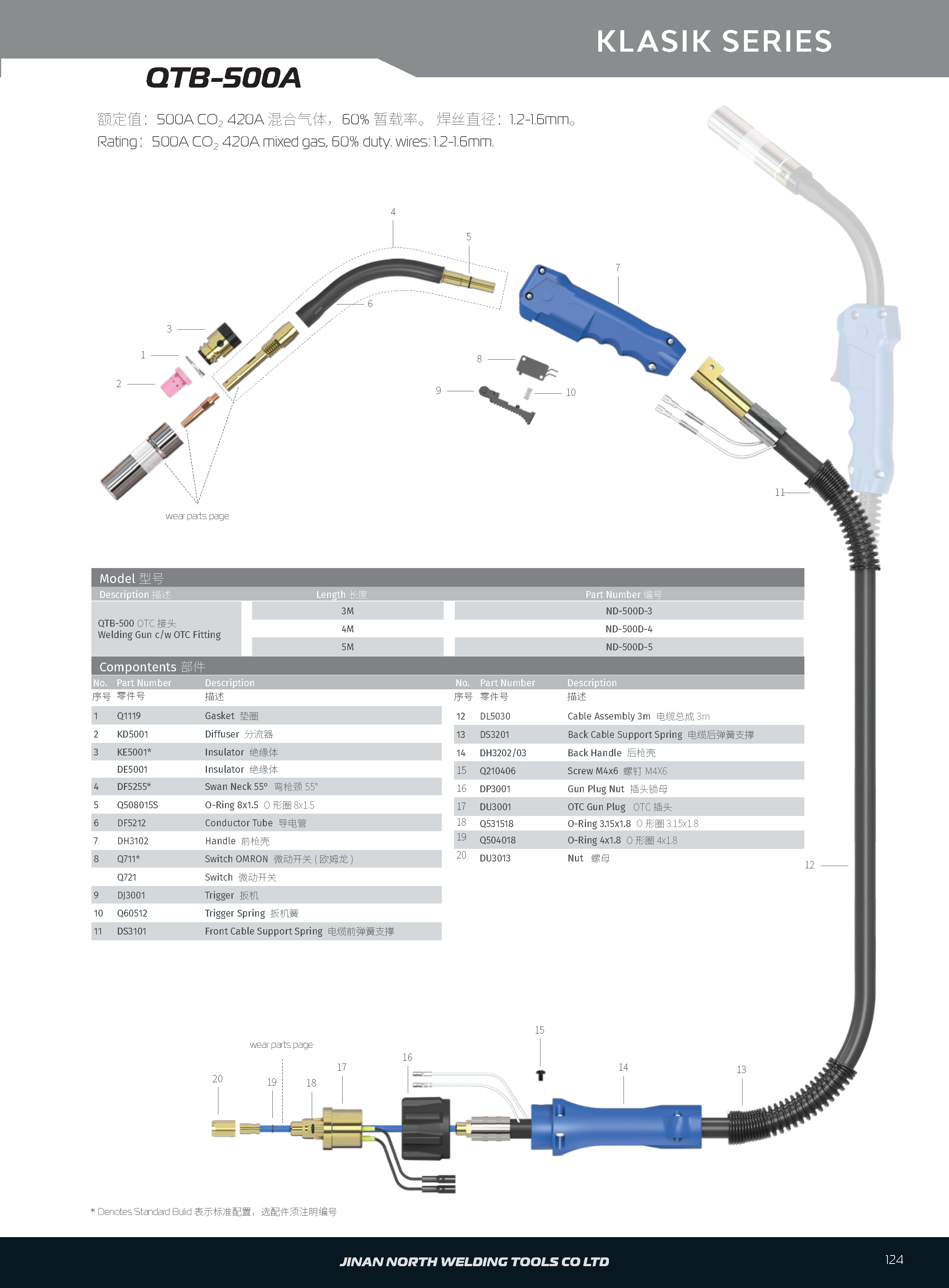

Components
| No. | Part Number | Description |
| 1 | Q1119 | Gasket |
| 2 | KD5001 | Diffuser |
| 3 | KE5001* | Insulator |
| DE5001 | Insulator | |
| 4 | KF5255* | Swan Neck 55° |
| 5 | Q508015S | O-ring 8X1.5 |
| 6 | DF5212 | Conductor Tube |
| 7 | DH3102 | Handle |
| 8 | Q711* | Switch OMRON |
| Q721 | Switch | |
| 9 | DJ3001 | Trigger |
| 10 | Q60512 | Trigger Spring |
| 11 | DS3101 | Front Cable Support Spring |
| 12 | DL5030 | Cable Assembly 3m |
| 13 | DS3201 | Back Cable Support Spring |
| 14 | DH3202/03 | Back Handle |
| 15 | Q210406 | Screw M4X6 |
| 16 | DP3001 | Gun Plug Nut |
| 17 | DU3001 | OTC Gun Plug |
| 18 | Q531518 | O-ring 3.15X1.8 |
| 19 | Q504018 | O-ring 4x1.8 |
| 20 | DU3013 | Nut |
