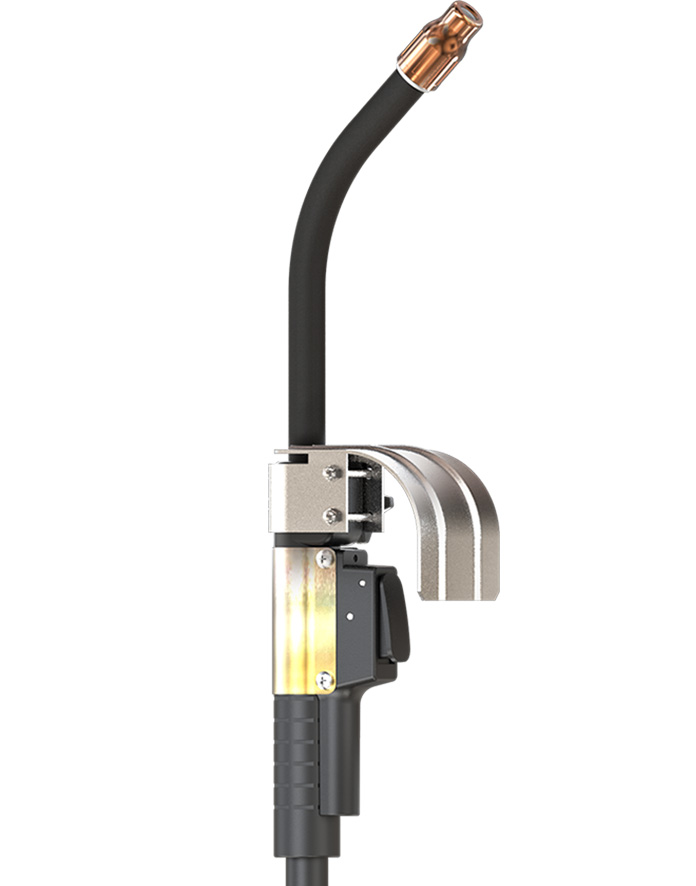

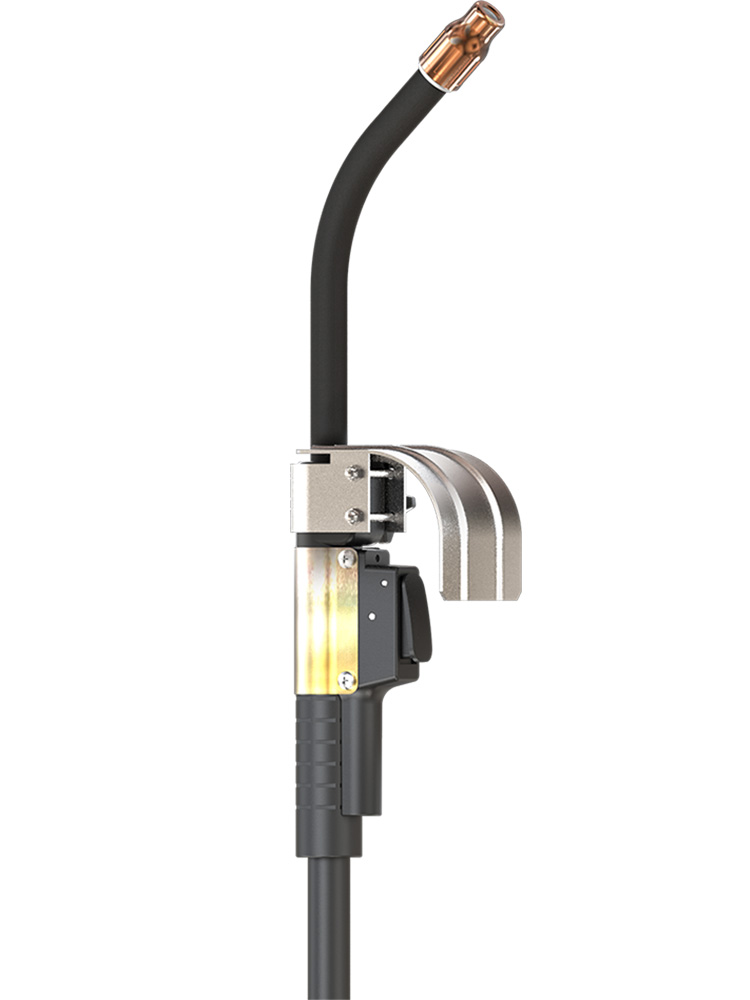

NK115 Self-Shielded Welding Gun
Technical Data
Rating: DC :450A
Duty Cycle: 60%
Wire size：2.0-3.0mm
Model
| Description | Length | Part Number |
| Welding Gun,Liner replacelable | 3M | NK-450R-3 |
| Welding Gun c/w Attenuating Switch | 3M | NK-450RS-3 |

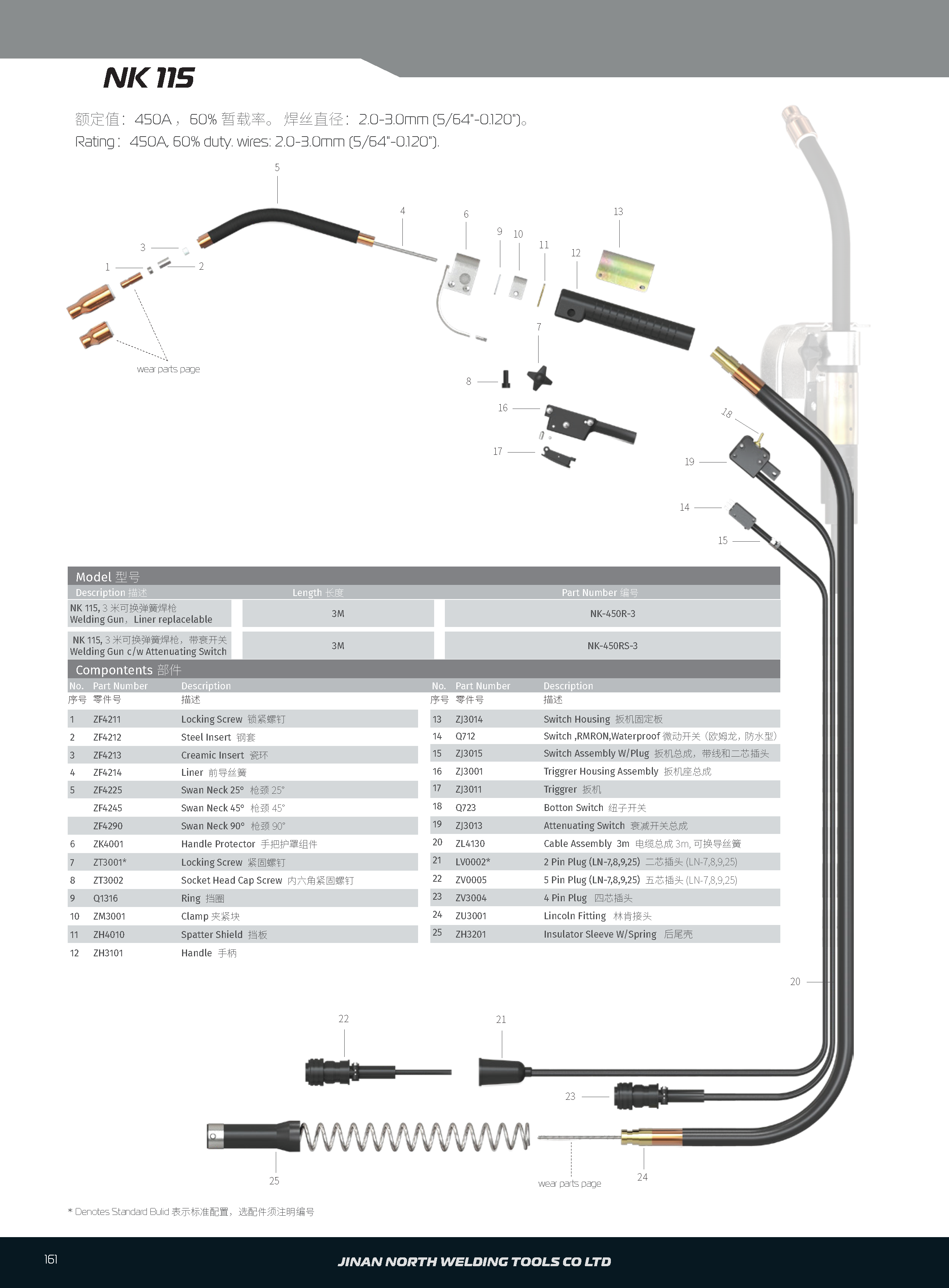

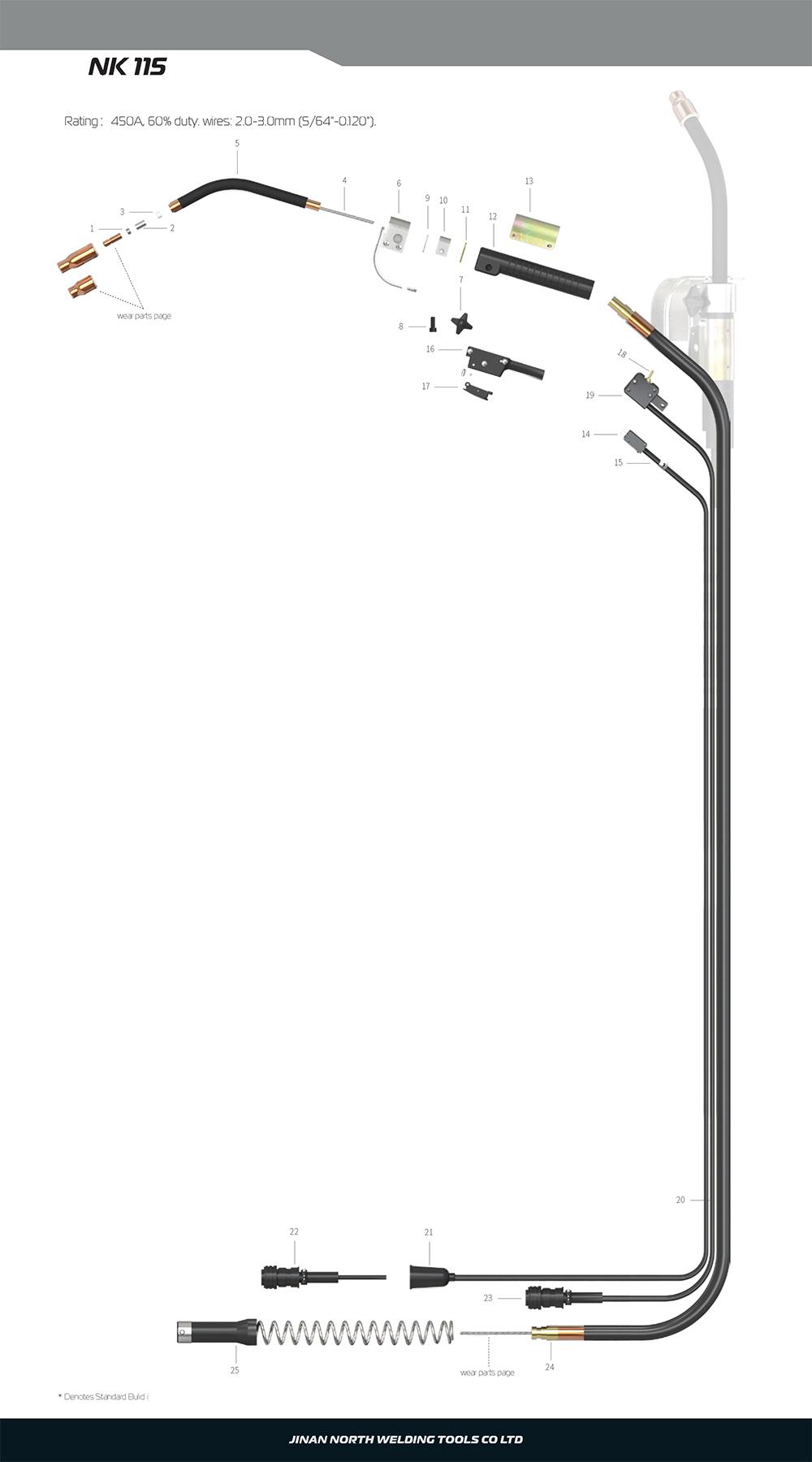

Components
| No. | Part Number | Description |
| 1 | ZF4211 | Locking Screw |
| 2 | ZF4212 | Steel insert |
| 3 | ZF4213 | Creamic Insert |
| 4 | ZF4214 | Liner |
| 5 | ZF4225 | Swan Neck 25° |
| ZF4245 | Swan Neck45° | |
| ZF4290 | Swan Neck 90° | |
| 6 | ZK4001 | Handle Protector |
| 7 | ZT3001* | Socket Head Cap Screw |
| 8 | ZK3002 | Locking Screw |
| 9 | Q1316 | Ring |
| 10 | ZM3001 | Clamp |
| 11 | ZH4010 | Spatter Shield |
| 12 | ZH3101 | Handle |
| 13 | ZJ3014 | Switch Housing |
| 14 | Q712 | Switch,Omron,Waterproof |
| 15 | ZJ3015 | Switch Assembly W/Plug |
| 16 | ZJ3001 | Trigger Housing Assembly |
| 17 | ZJ3011 | Trigger |
| 18 | Q723 | Botton Switch |
| 19 | ZJ3013 | Attenuating Switch |
| 20 | ZL4013 | Cable Assembly 3m |
| 21 | LV0002* | 2Pin Plug (LN-7,8,9,25) |
| 22 | ZV0005 | 5Pin Plug (LN-7,8,9,25) |
| 23 | ZV3004 | 4Pin Plug |
| 24 | ZU3001 | Lincoln Fitting |
| 25 | ZH3201 | Insulator Sleeve W/Spring |
