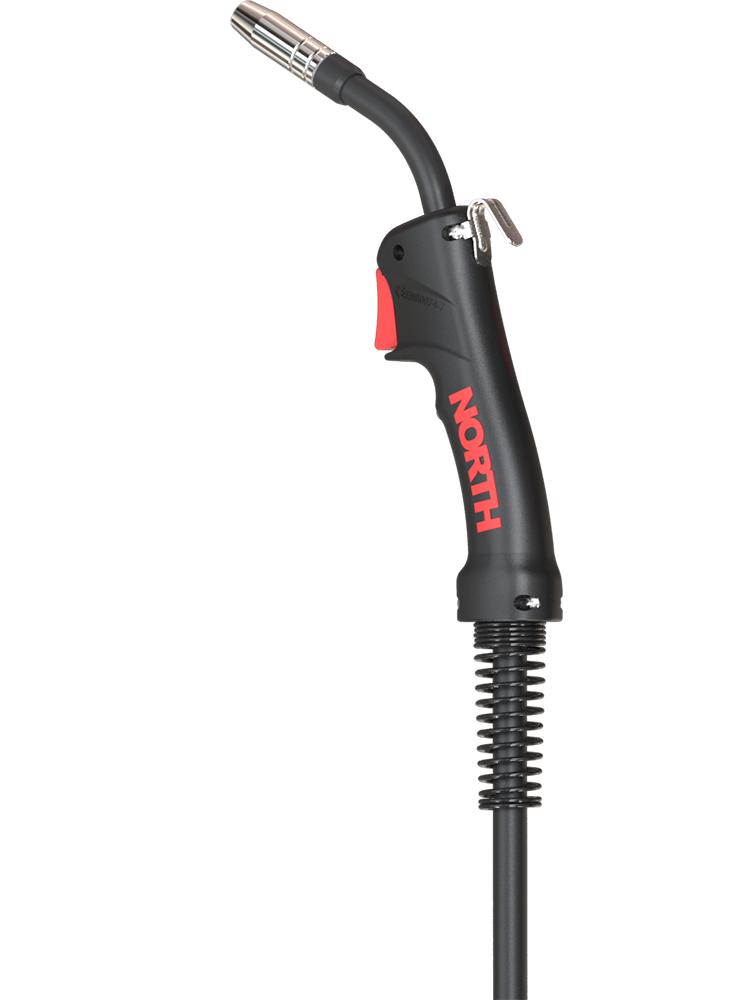

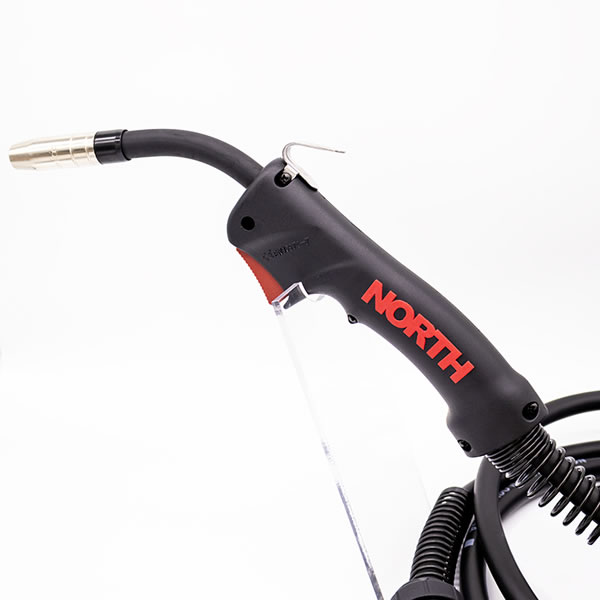

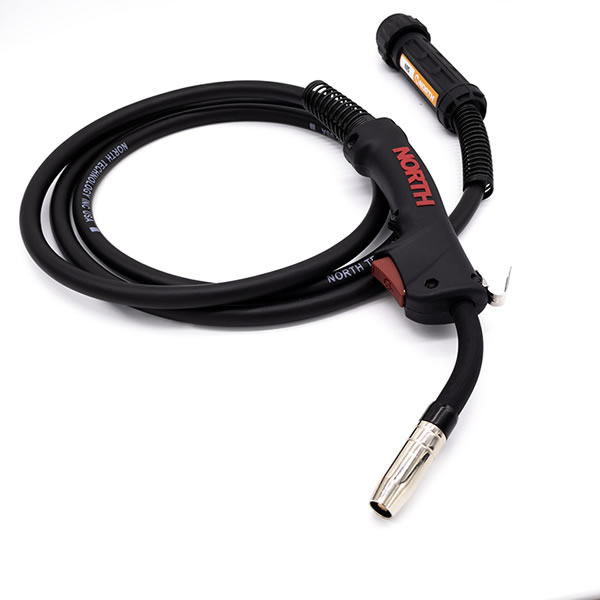

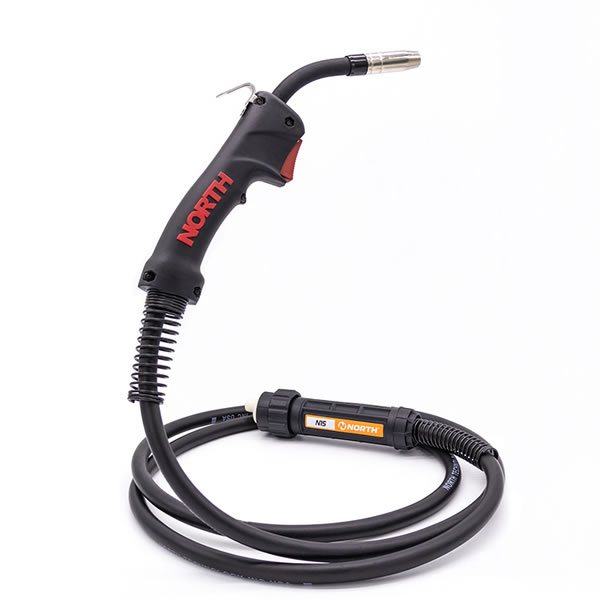

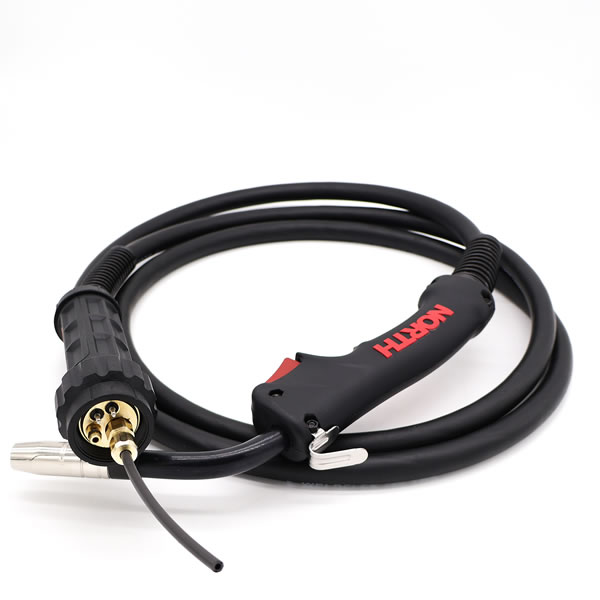

N15, MIG/MAG Welding Gun
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 180A
Rating: Mixed Gas: 150A
Duty Cycle: 60%
Wire Size: 0.6-1.0
Model
| Description | Length | Part Number |
| Welding Gun c/w Euro Fitting | 3M | N15-3 |
| 4M | N15-4 | |
| 5M | N15-5 |

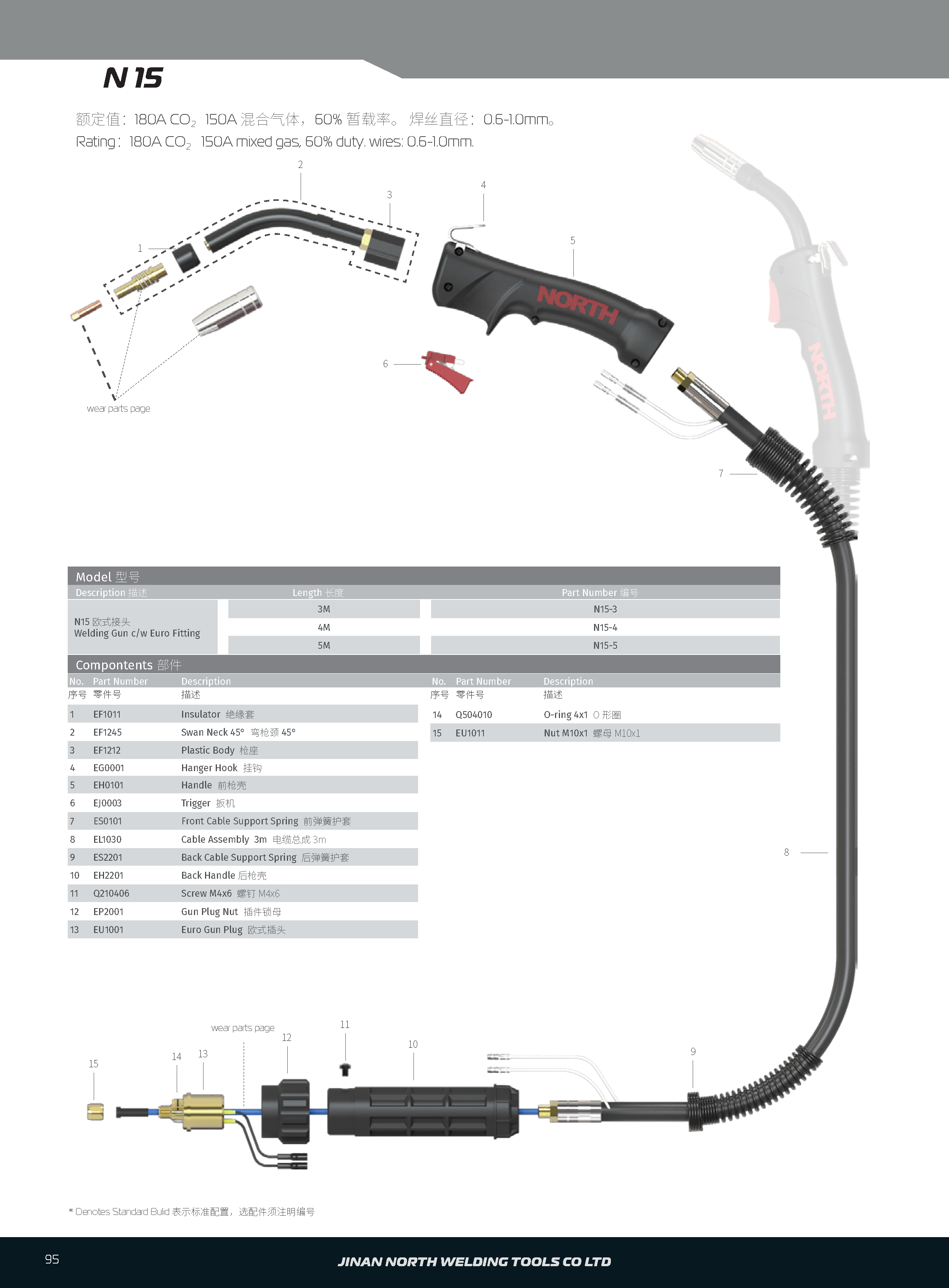

Components
| No. | Part Number | Description |
| 1 | EF1011 | Insulator |
| 2 | EF1245 | Swan Neck 50° |
| 3 | EF1212 | Plastic Body |
| 4 | EG0001 | Hanger Hook |
| 5 | EH0101 | Handle |
| 6 | EJ0003 | Trigger |
| 7 | ES0101 | Front Cable Support Spring |
| 8 | EL1030 | Cable Assembly 3m |
| 9 | ES2201 | Back Cable Support Spring |
| 10 | EH2201 | Back Handle |
| 11 | Q210406 | Screw M4x6 |
| 12 | EP2001 | Gun Plug Nut |
| 13 | EU1001 | Euro Gun Plug |
| 14 | Q504010 | O-ring 4x1 |
| 15 | EU1011 | Nut M10x1 |
