Cooling Method: Air-Cooled
Rating: C02: 400A
Rating: Mixed Gas: 380A
Duty Cycle: 60%
Wire Size: 1.0-1.6
EURO FITTING | 3M | N40-3 |
4M | N40-4 | |
5M | N40-5 |

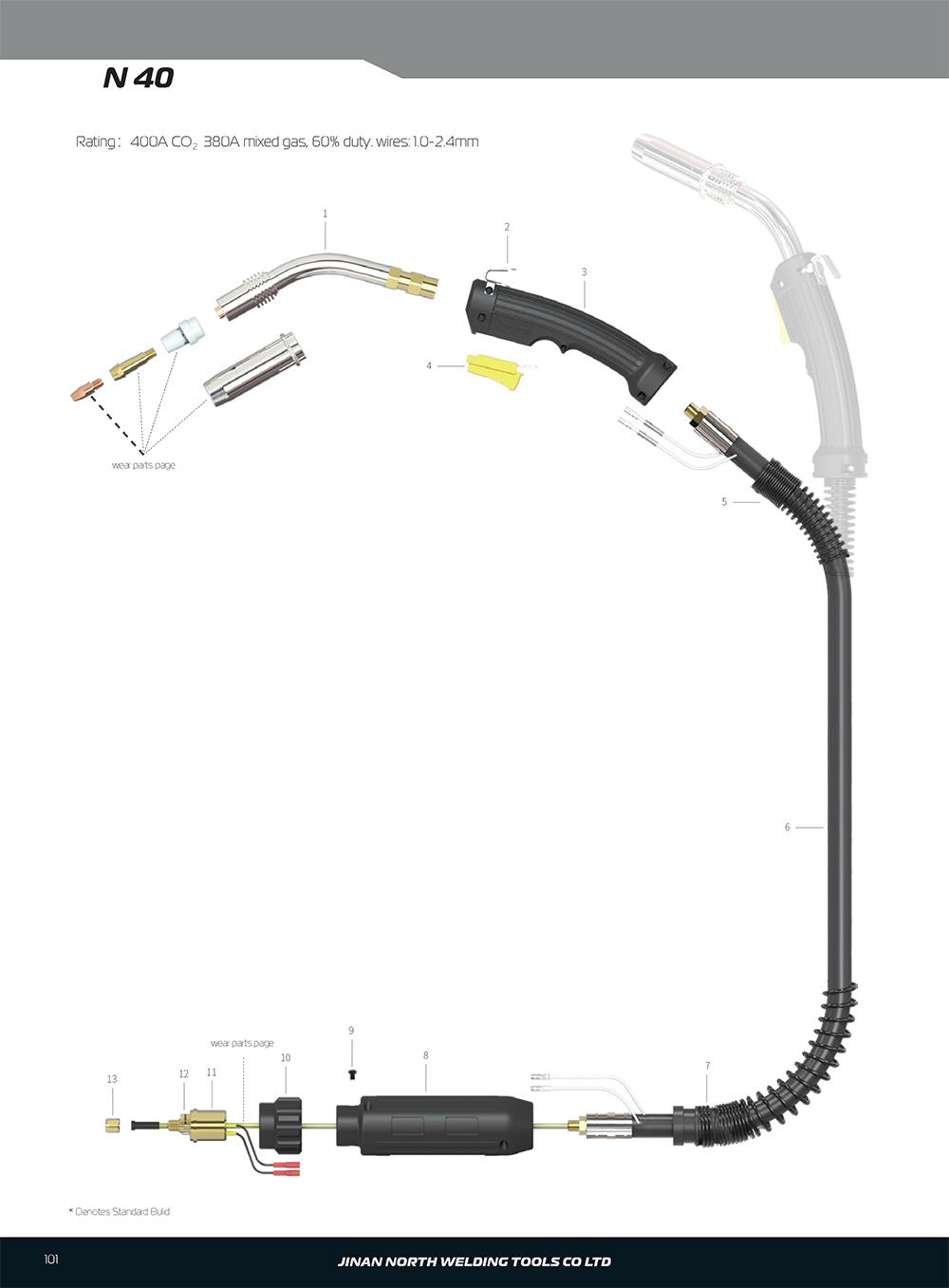

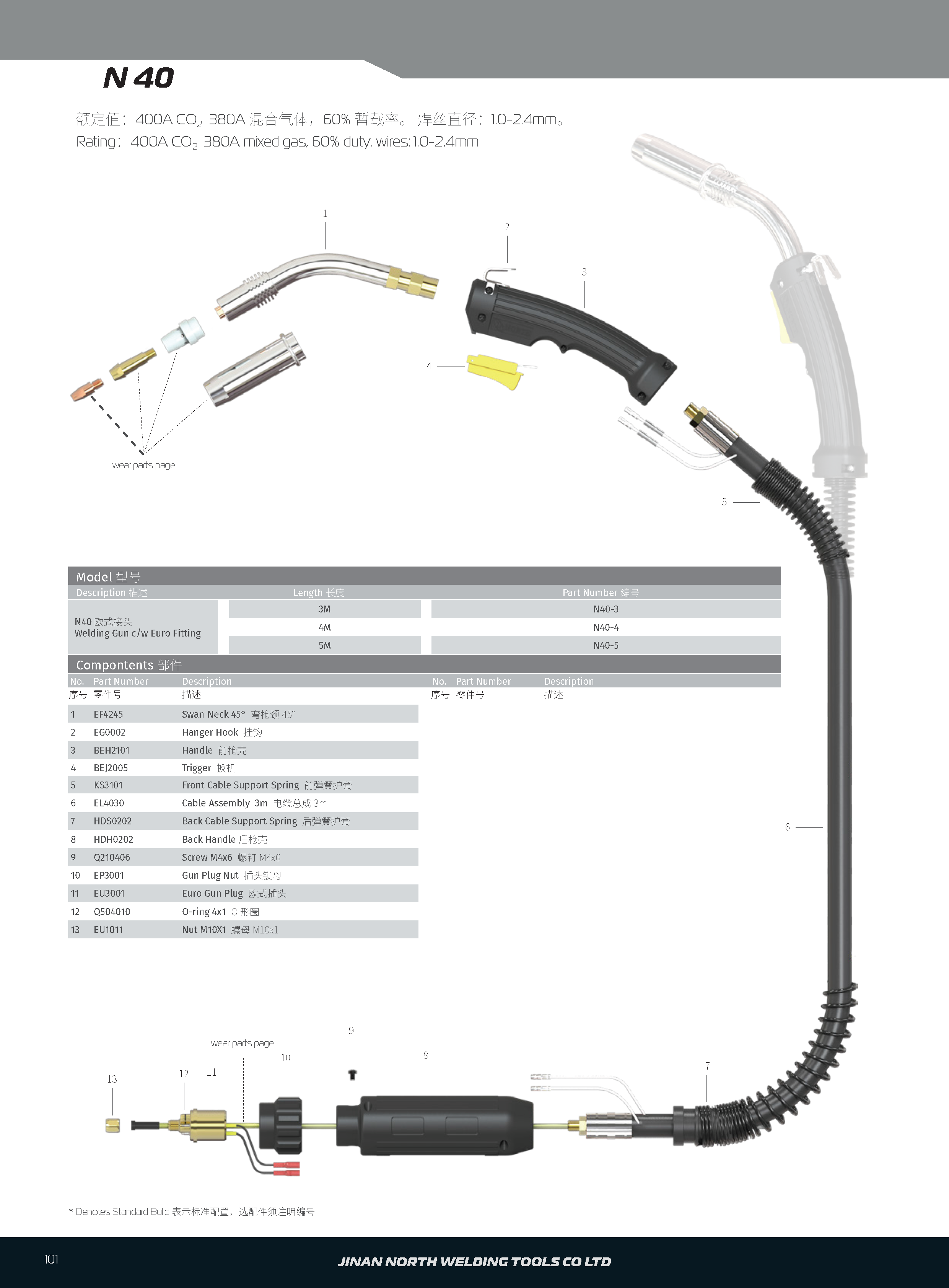

No. | Part Number | Description |
1 | EF4245 | Swan Neck 45° |
2 | EG0002 | Hanger Hook |
3 | BEH2101 | Handle |
4 | BEJ2005 | Trigger |
5 | KS3101 | Front Cable Support Spring |
6 | EL4030 | Cable Assembly 3m |
7 | HDS0202 | Back Cable Support Spring |
8 | HDH0202 | Back Handle |
9 | Q210406 | Screw M4x6 |
10 | EP3001 | Gun Plug Nut |
11 | EU3001 | Euro Gun Plug |
12 | Q504010 | O-ring 4x1 |
13 | EU1011 | Nut M10x1 |
