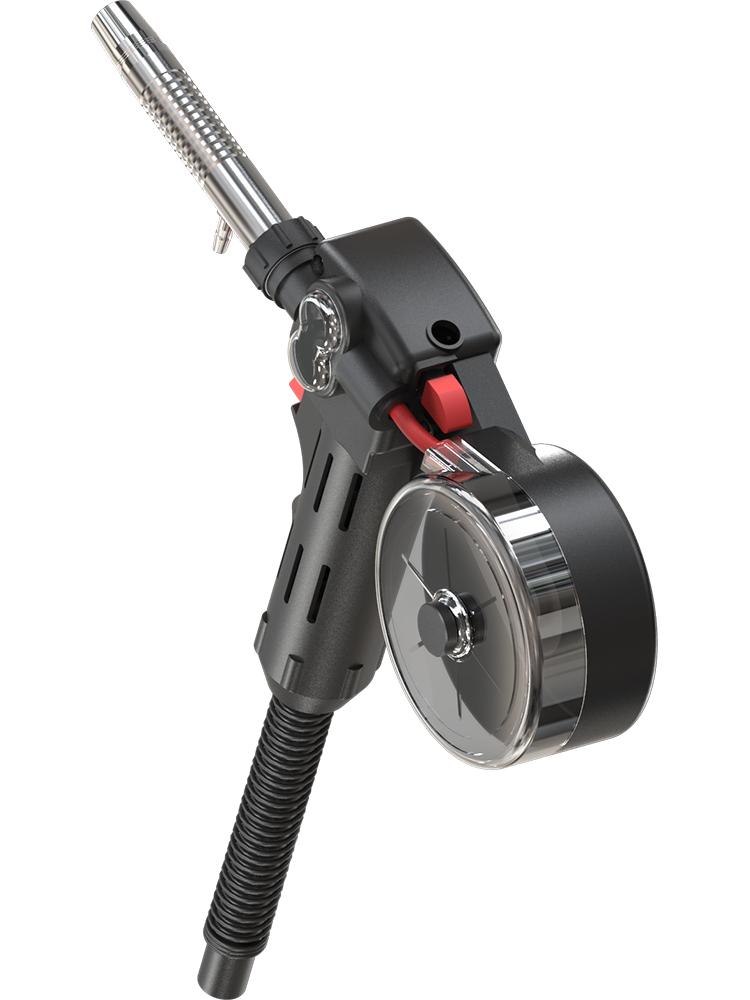

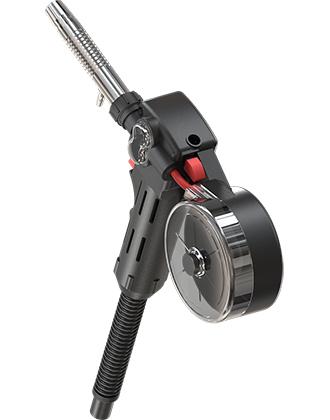

QLBF-185, MIG/MAG Welding Gun
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 180A
Rating: Mixed Gas: 160A
Duty Cycle: 60%
Wire Size: 0.8-0.9
Order Part No.
| 4 PIN PLUG Φ13MM HOLE LUG 5MM ID HOSE | 6M | QLBF-185-6 |
| 8M | QLBF-185-8 |

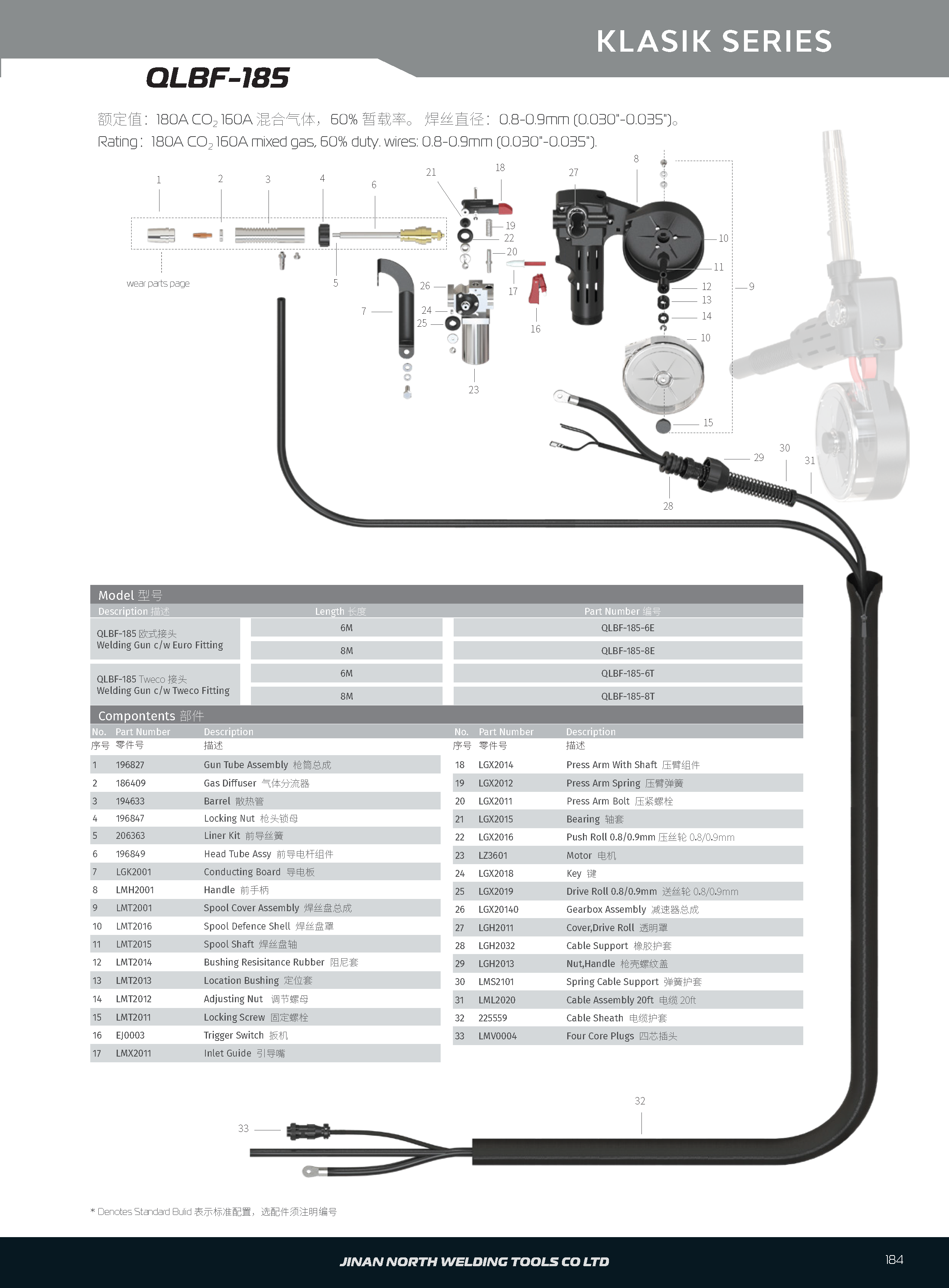

Components
| No. | Part Number | Description |
| 1 | 196827 | Gun Tube Assembly |
| 2 | 186409 | Gas Diffuser |
| 3 | 194633 | Barrel |
| 4 | 196847 | Locking Nut |
| 5 | 206363 | Liner Kit |
| 6 | 196849 | head Tube Assy |
| 7 | LGK2001 | Conducting Board |
| 8 | LMH2001 | Handle |
| 9 | LMT2001 | Spool Cover Assembly |
| 10 | LMT2016 | Spool Defence Shell |
| 11 | LMT2015 | Spool Shaft |
| 12 | LMT2014 | Bushing Resistance Rubber |
| 13 | LMT2013 | Location Bushing |
| 14 | LMT2012 | Adjusting Nut |
| 15 | LMT2011 | Locking Screw |
| 16 | EJ0003 | Trigger Switch |
| 17 | LMX2011 | Inlet Guide |
| 18 | LGX2014 | Press Arm Shaft |
| 19 | LGX2012 | Press Arm Spring |
| 20 | LGX2011 | Press Arm Bolt |
| 21 | LGX2015 | Bearing |
| 22 | LGX2016 | Push Roll 0.8/0.9mm |
| 23 | LZ3601 | Motor |
| 24 | LGX2018 | Key |
| 25 | LGX2019 | Drive Roll 0.8/0.9mm |
| 26 | LGX20140 | Gearbox Assembly |
| 27 | LGH2011 | Cover Drive Roll |
| 28 | LGH2032 | Cable support |
| 29 | LGH2013 | Nut Handle |
| 30 | LMS2101 | Spring Cable Support |
| 31 | LML2020 | Cable Assembly 20ft |
| 32 | 225559 | Cable Sheath |
| 33 | LMV0004 | Four Core Plugs |
