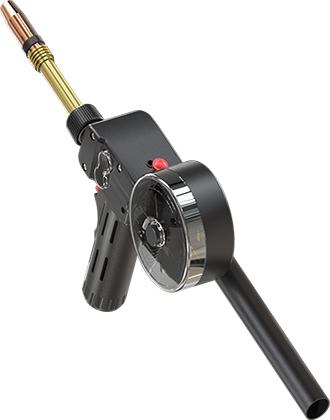

QTLB-24D-SP, MIG/MAG Welding Gun

Technical Data

Cooling Method: Air-Cooled
Rating: C02: 200A
Rating: Mixed Gas: 160A
Duty Cycle: 60%
Wire Size: 0.6-1.2

Order Part No.

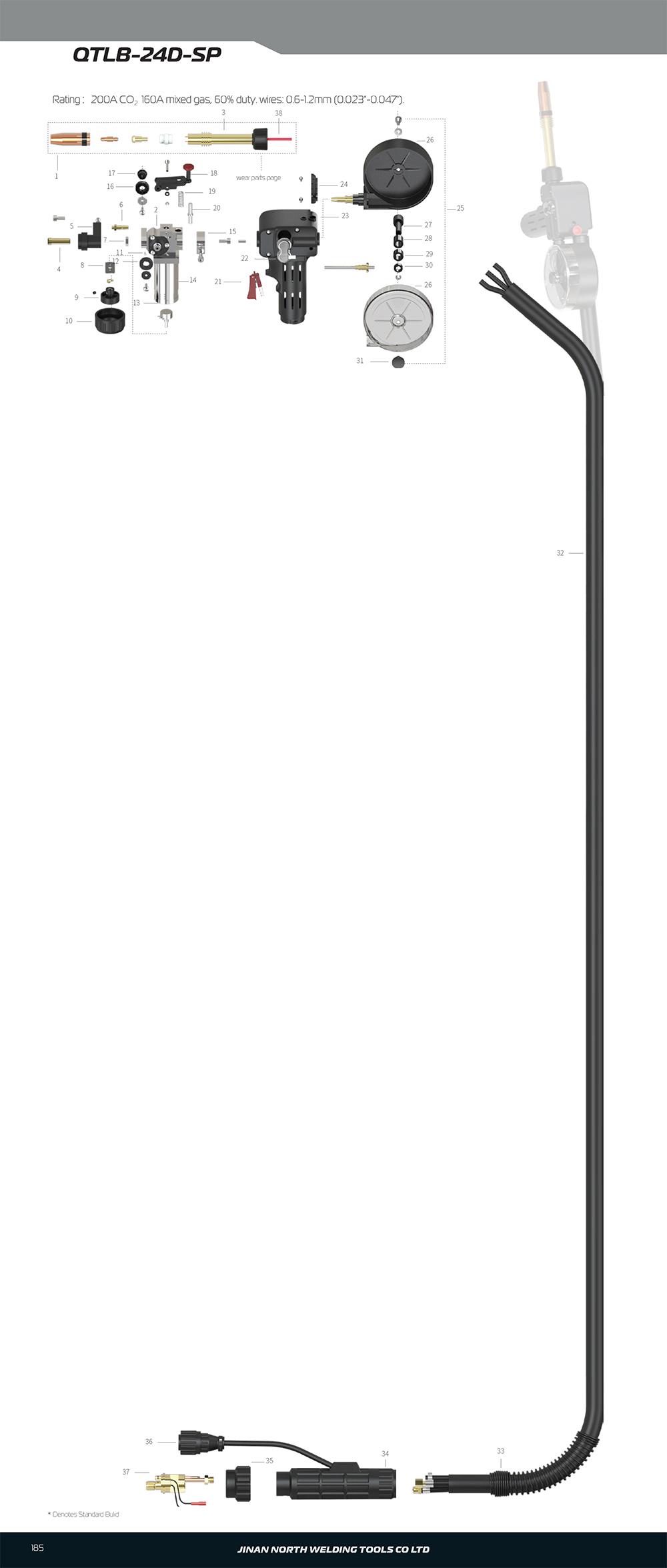

Components

No.	Part Number	Description
1	LTF21180	Swan Neck 0°
	LTF2245	Swan Neck 45°
2	LTX2001	Gear Box Assembly
3	LTF2111	Straight Conductor Tube
	LTF2112	Goose Conductor Tube
4	LTX2011	Pin Head Tube
5	LTX2012	Contact Adaptor
6	LTX2013	Gas Connector
7	LGF2111	Nut
8	LTZ2012	Potentiometer Housing
9	LTZ2013	WFS Control Knob
10	LTH2112	Nut Handle
11	LGX2018	Key
12	LGX2019	Drive Roll(0.8/0.9mm)
	LGX2020	Drive Roll 1.2mm
13	Q8210*	Potentiometer 10KΩ
	Q8205*	Potentiometer 5KΩ
	Q8201*	Potentiometer 1KΩ
14	LZ3601	Motor
15	LTX2015	Clamp
16	LGX2016*	Push Roll(0.8/0.9mm)
	LGX2017	Push Roll 1.2mm
17	LGX2015	Bearing
18	LTY2001	Press Arm Shaft
19	LGX2012	Press Arm Spring
20	LGX2011	Press Arm Bolt
21	EJ0003	Trigger Switch
22	LGH2011	Cover,Drive Roll
23	LTH2101	Handle
24	LTH2111	Cable Clamp
25	LTT2001	Spool Cover Assembly
26	LTT2016	Spool Defence Shell
27	LTT2015	Spool Shaft
28	LMT2014	Bushing Resistance Rubber
29	LMT2013	Location Bushing
30	LMT2012	Adjusting Nut
31	LMT2011	Locking Screw
32	LTL2060L	Cable Assembly 6m
33	SS5201	Backing Spring Cable Support
34	SH5201	Back Handle
35	EP3001	Gun Plug Nut
36	MV0010	10 Pin Connector
37	LTU2003	Euro Gun Plug
38	LTR21134*	Liner,Use Swan Neck 180°
	LTR21142	Liner,Use Swan Neck 45°

* Denotes Standard Build
