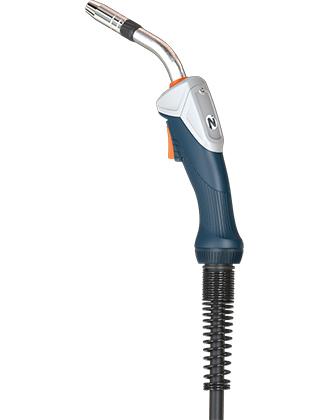

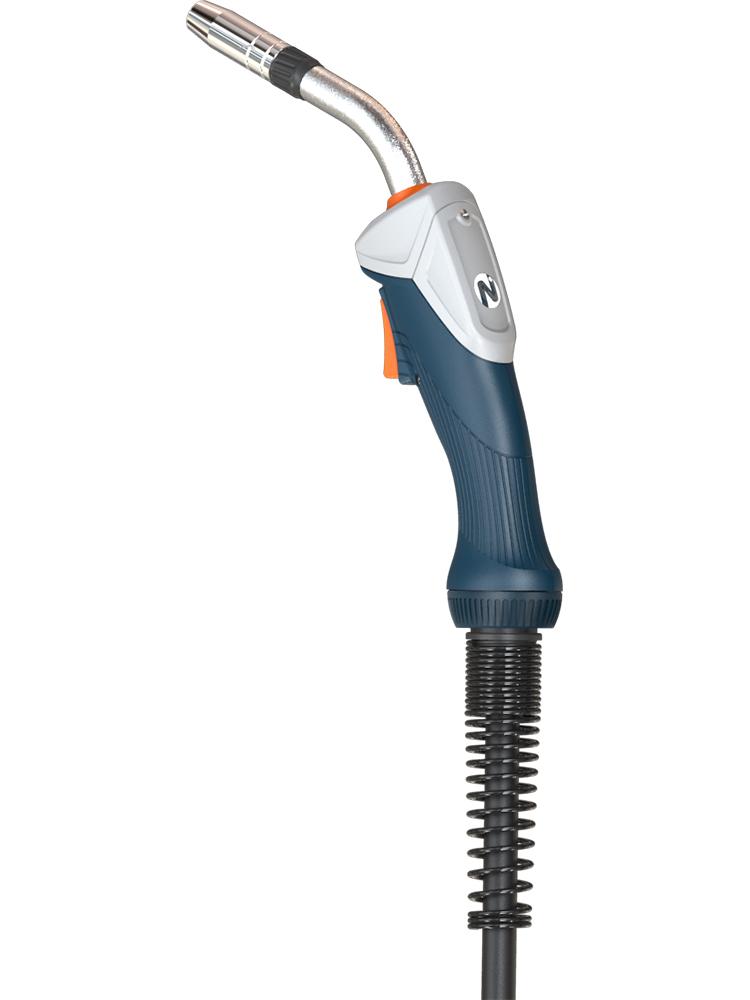

SN 15F/15S ，MIG/MAG Welding Gun
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 180A
Rating: Mixed Gas: 150A
Duty Cycle: 60%
Wire Size: 0.6-1.0
Model
| Description | Length | Part Number |
| SN 15F 4CE Welding Gun c/w Euro Fitting | 3M | SN 15F-3E |
| 4M | SN 15F-4E | |
| 5M | SN 15F-5E | |
| SN 15S Klasik Welding Gun c/w Euro Fitting | 3M | SN 15F-3E |
| 4M | SN 15F-4E | |
| 5M | SN 15F-5E |

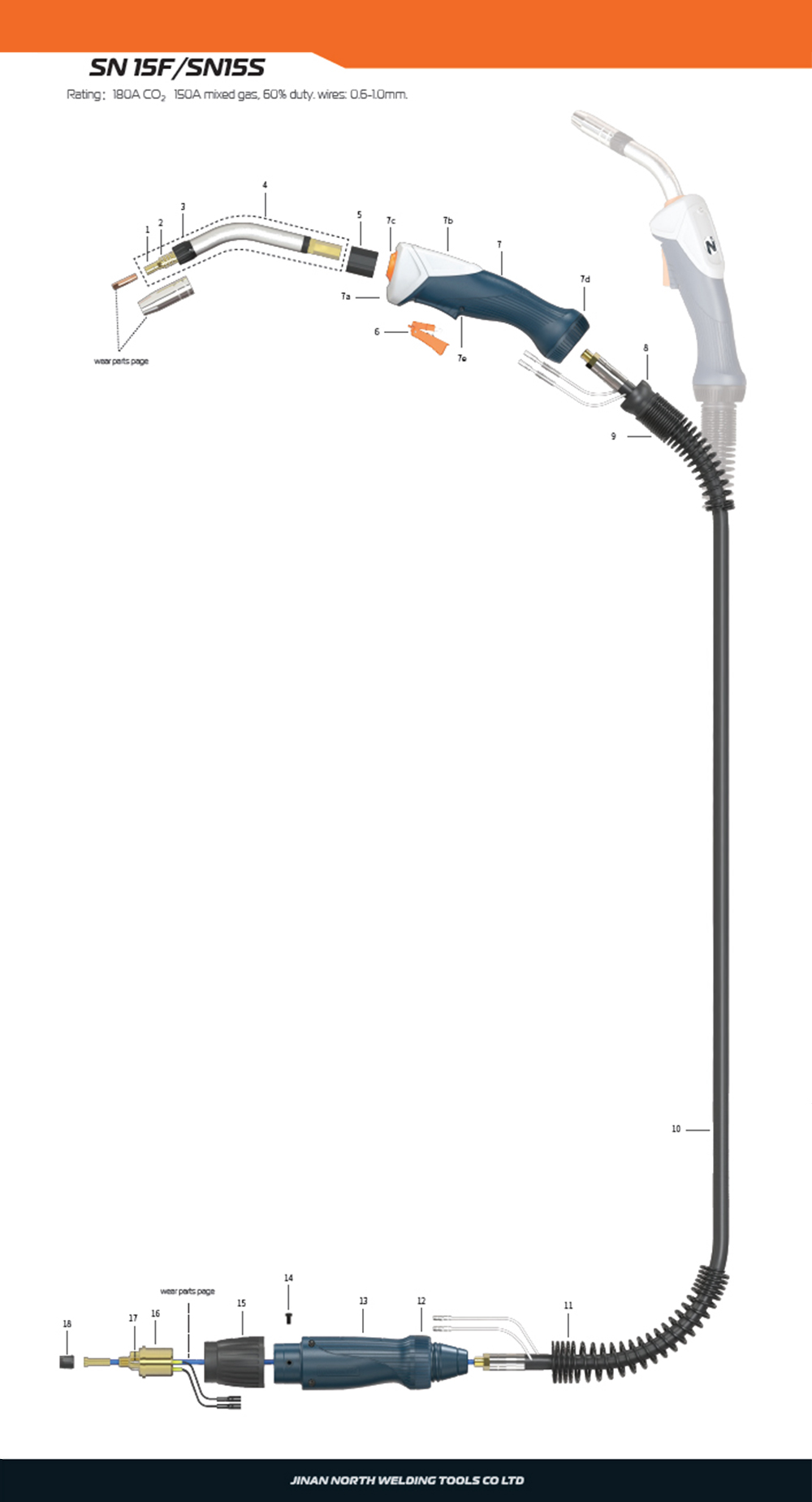

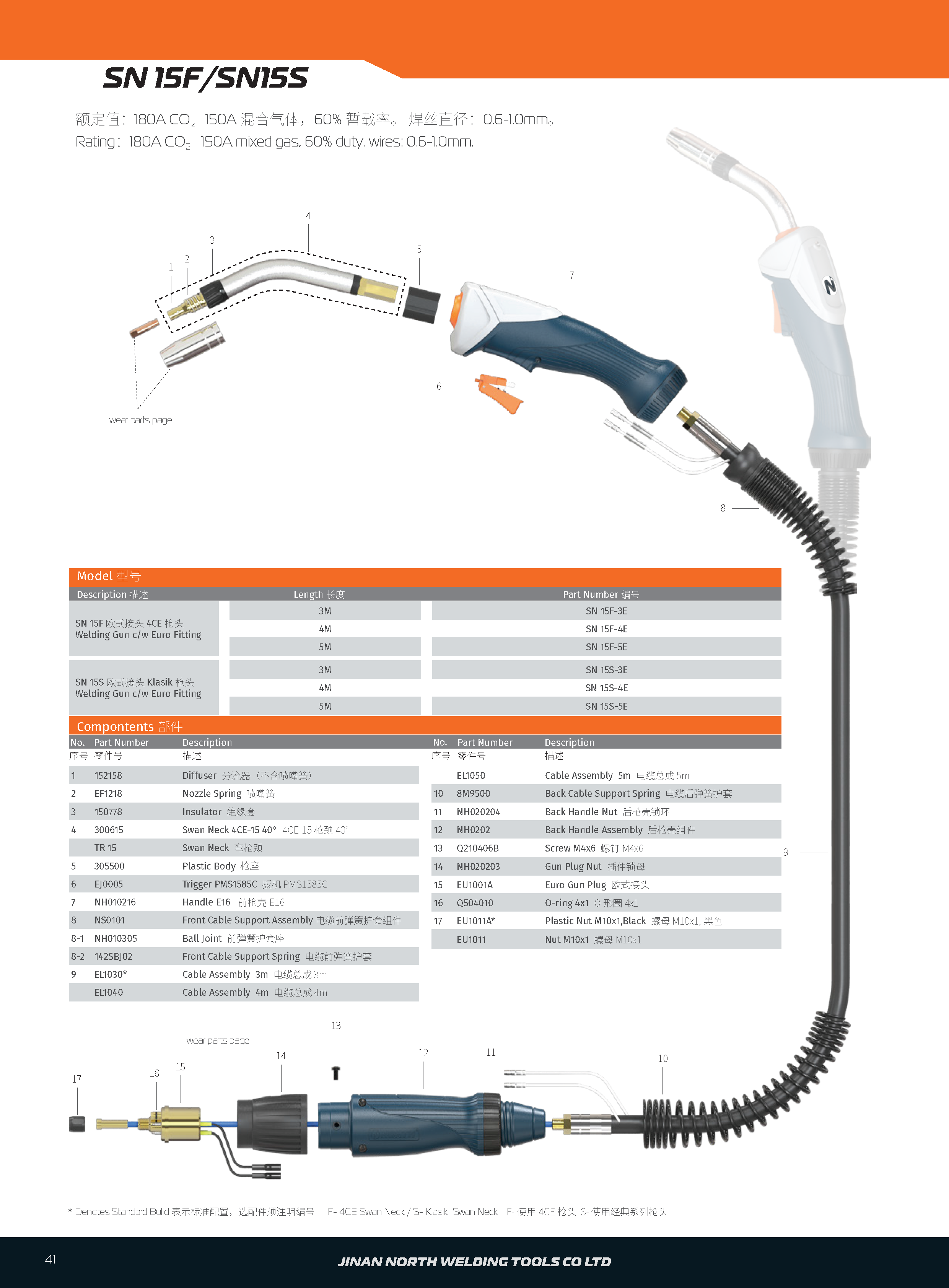

Components
| No. | Part Number | Description |
| 1 | 152158 | Diffuser |
| 2 | EF1218 | Nozzle Spring |
| 3 | 150778 | Insulator |
| 4 | 300615 | Swan Neck 4CE-15 40° |
| 5 | 305500 | Plastic Body |
| 6 | EJ0005 | Trigger PMS1585C |
| 7 | NH010201 | Torch Handle DIY R |
| NH010202 | Torch Handle DIY L | |
| 7a | NH010203 | Front Cover |
| 7b | NH010205 | PCB Holder PCB |
| 7c | NH010209 | Adaptor 14mm |
| 7d | NH010208 | Locking Nut |
| 7e | Q260312B | ST Screw 3x12 |
| 8 | NH010305 | Ball Joint |
| 9 | 142SBJ02 | Front Cable Support Spring |
| 10 | EL1030* | Cable Assembly 3m |
| EL1040 | Cable Assembly 4m | |
| EL1050 | Cable Assembly 5m | |
| 11 | 8M9500 | Back Cable Support Spring |
| 12 | NH020204 | Back Handle Nut |
| 13 | NH0202 | Back Handle Assembly |
| 14 | Q210406B | Screw M4x6 |
| 15 | NH020203 | Gun Plug Nut |
| 16 | EU1001A | Euro Gun Plug |
| 17 | Q504010 | O-ring 4x1 O |
| 18 | EU1011A* | Plastic Nut M10x1,Black |
* IMPORTANT: Must indicate F- 4CE swan neck / S- Klasik swan neck welding gun to classify standard configuration.
