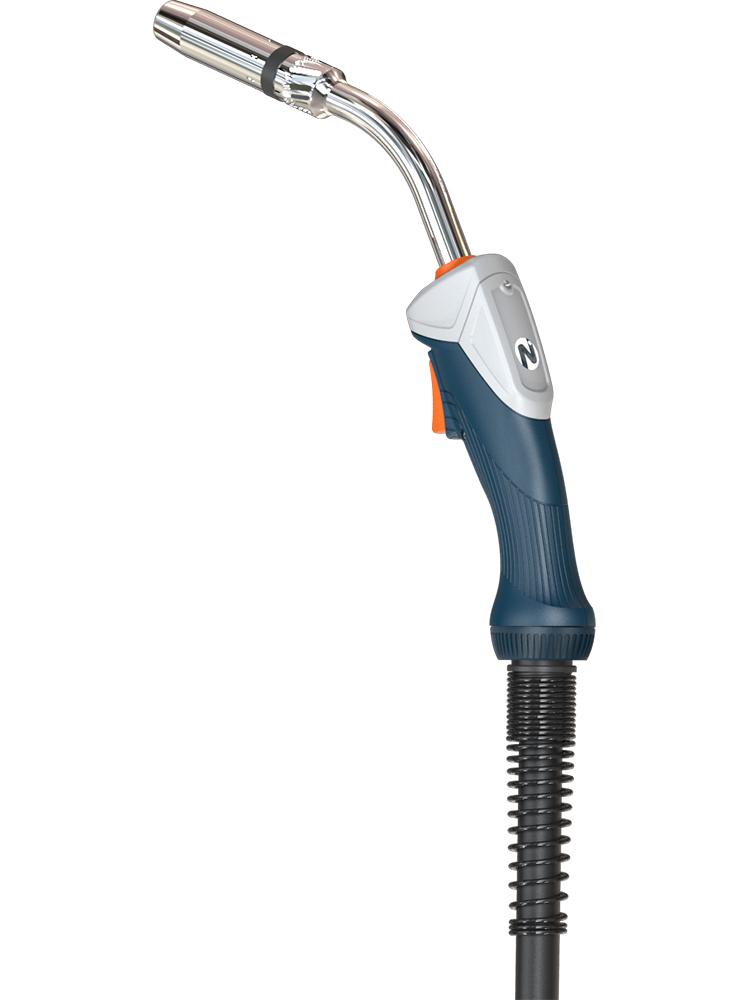

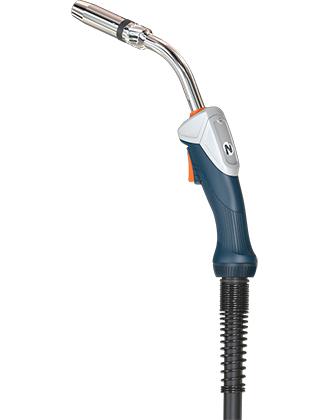

SN 36F/36S MIG/MAG Welding Gun
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 340A
Rating: Mixed Gas: 300A
Duty Cycle: 60%
Wire Size: 0.8-1.6
Model
| Description | Length | Part Number |
| SN 36F 4CE Welding Gun c/w Euro Fitting | 3M | SN 36F-3E |
| 4M | SN 36F-4E | |
| 5M | SN 36F-5E | |
| SN 36S Klasik Welding Gun c/w Euro Fitting | 3M | SN 36S-3E |
| 4M | SN 36S-4E | |
| 5M | SN 36S-5E |

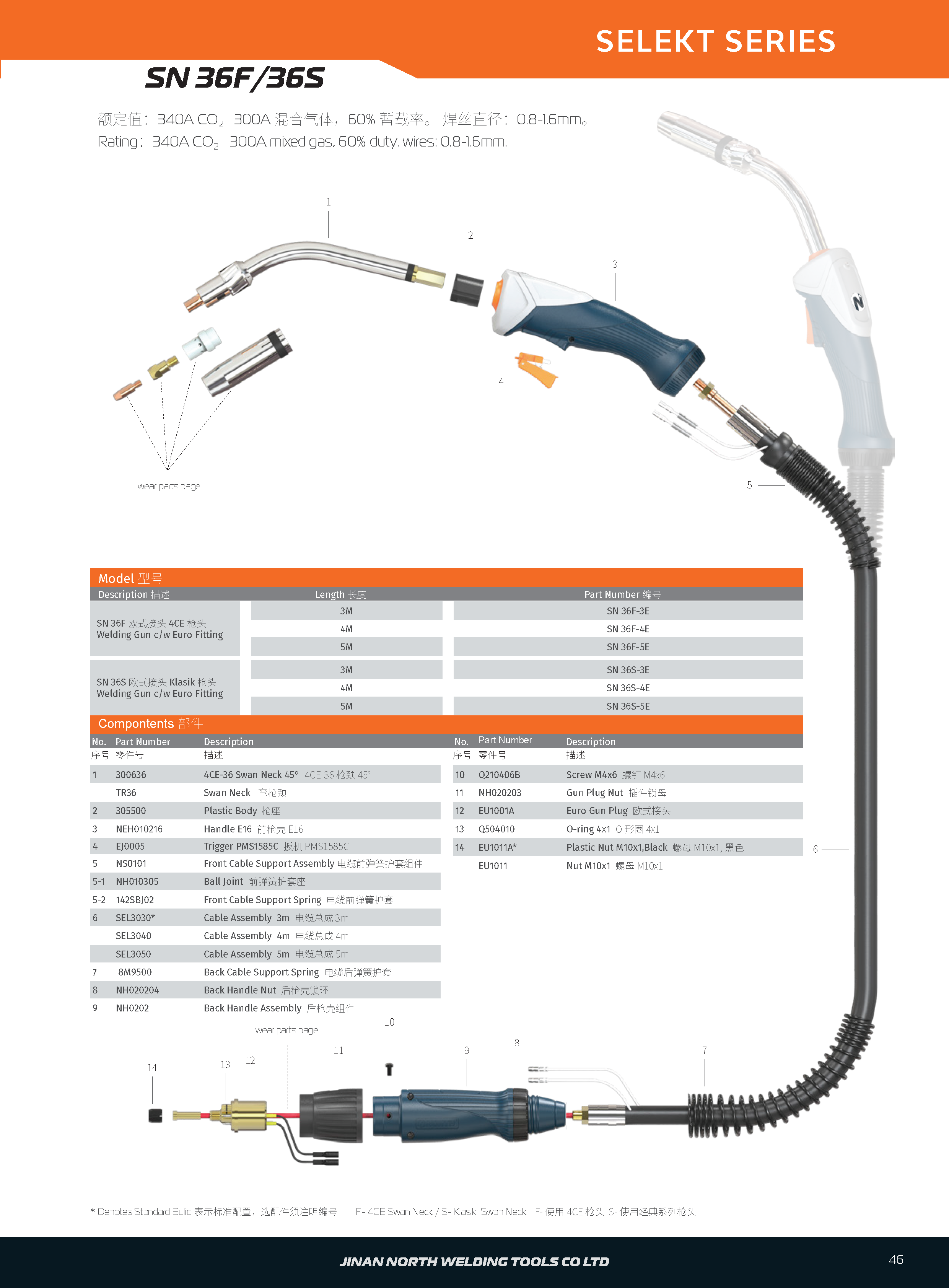

Components
| No. | Part Number | Description |
| 1 | 300636 | 4CE-36 Swan Neck 45° |
| 3006362 | Swan Neck | |
| 2 | 305500 | Plastic Body |
| 3 | NH010201 | Torch Handle DIY R |
| NH010202 | Torch Handle DIY L | |
| 3a | NH010203 | Front Cover |
| 3b | NH010205 | PCB Holder |
| 3c | NH010206 | Adaptor 16mm |
| 3d | NH010208 | Locking Nut |
| 3e | Q260312B | ST Screw 3x12 |
| 4 | EJ0005 | Trigger PMS1585C |
| 5 | NH010305 | Ball Joint |
| 6 | 142SBJ02 | Front Cable Support Spring |
| 7 | SEL3030* | Cable Assembly 3m |
| SEL3040 | Cable Assembly 4m | |
| SEL3050 | Cable Assembly 5m | |
| 8 | 8M9500 | Back Cable Support Spring |
| 9 | NH020204 | Back Handle Nut |
| 10 | NH0202 | Back Handle Assembly |
| 11 | Q210406B | Screw M4x6 |
| 12 | NH020203 | Gun Plug Nut |
| 13 | EU1001A | Euro Gun Plug |
| 14 | Q504010 | O-ring 4x1 |
| 15 | EU1011A* | Plastic Nut M10x1,Black |
* IMPORTANT: Must indicate F- 4CE swan neck / S- Klasik swan neck welding gun to classify standard configuration.
