Cooling Method:
Air-Cooled
Rating:co2:
500A
Rating: Mixed Gas:
350A
Duty Cycle:
60%
Wire Size:
1.0-1.6
Fitting Style:
TWECO/MILLER/EURO
Description | Length | Part Number |
Tweco Fitting | 10ft | MTR500-10T |
12ft | MTR500-12T | |
15ft | MTR500-15T |

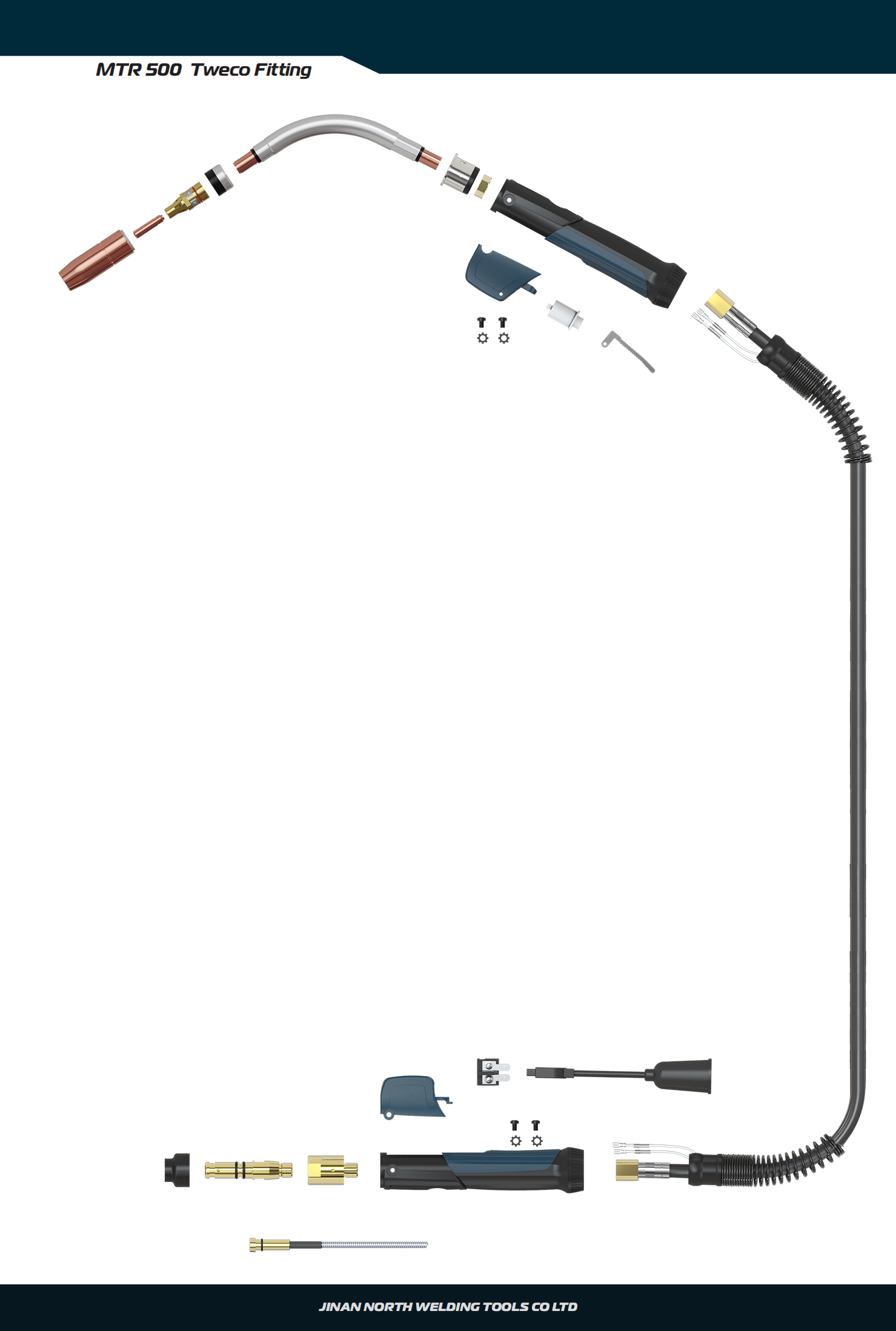

No. | Part Number | Description | No. | Part Number | Description |
1 | 401-6-62 | Nozzle | 15 | Q1705 | Gasket |
2 | 403-1-116 | Contact Tip | 16 | TRG5610 | Cable Assembly 10ft |
3 | 404-3 | Tip Adaptor | TRG5612 | Cable Assembly12ft | |
4 | 402-11 | Insulator | TRG5615 | Cable Assembly 15ft | |
5 | 505-60 | Swan Neck Assembly | 17 | LAK-354 | 2 Pin Plug Assembly |
6 | TRG4213 | Torch Body Assembly | 18 | 194 | Connector Tab Assembly |
7 | NH0107 | Handle | 19 | NH020401 | Rear Housing |
8 | N_PL | Label | 20 | TRG4312 | Connector Plug |
9 | NH010704 | Trigger Housing | 21 | TU0007 | Tweco Connector Plug |
10 | N411-1 | Trigger Switch | 22 | TRG4215 | Insulator Cap |
11 | NH010707 | Trigger | 23 | 44-116-10 | Liner 10ft,1.6mm |
12 | NH010706 | Ball Joint | 44-116-12 | Liner 12ft,1.6mm | |
13 | 142SBJ02 | Cable Support Spring | 44-116-15 | Liner 15ft,1.6mm | |
14 | Q210508BP | Screw M5x8 |
