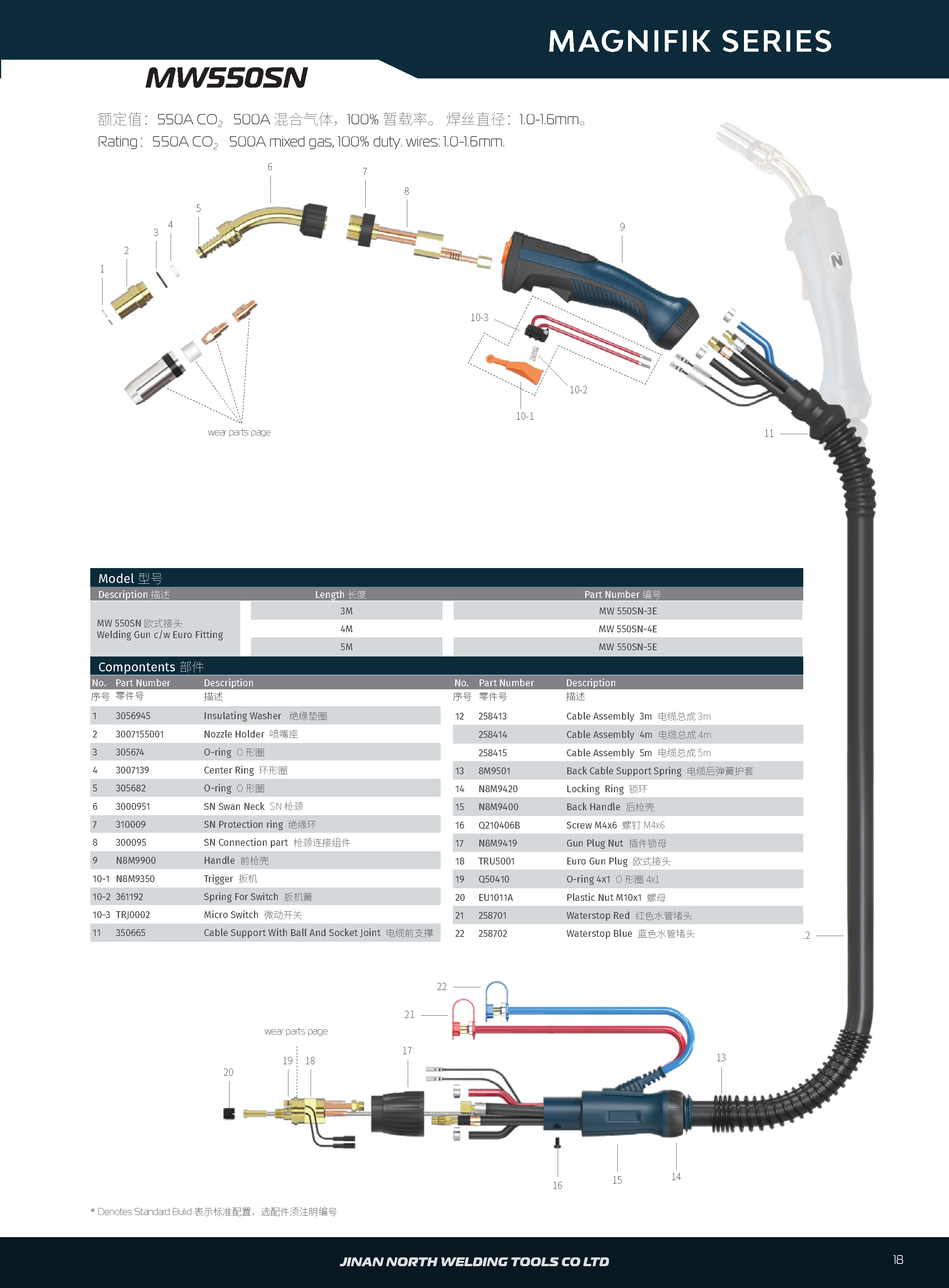

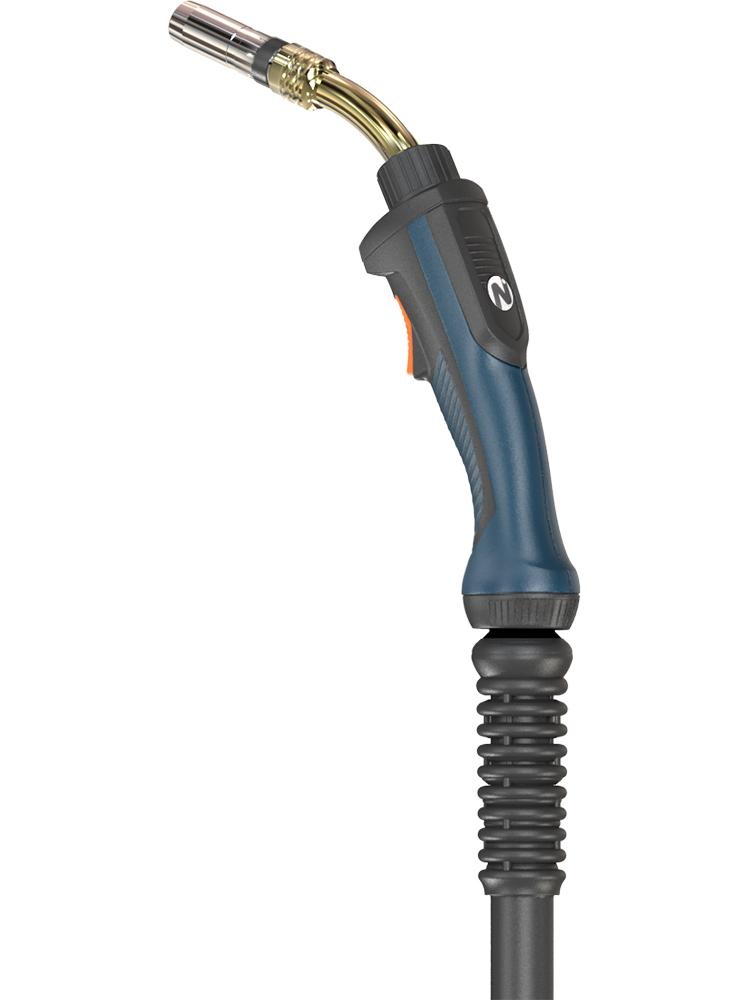

MW550SN，MIG/MAG Welding Gun
Technical Data
Cooling Method: Water-Cooled
Rating: C02: 550A
Rating: Mixed Gas: 500A
Duty Cycle: 100%
Wire Size: 1.0-1.6
Order Part No.
| EURO FITTING | 3M | MW 550SN-3E |
| 4M | MW 550SN-4E | |
| 5M | MW 550SN-5E |

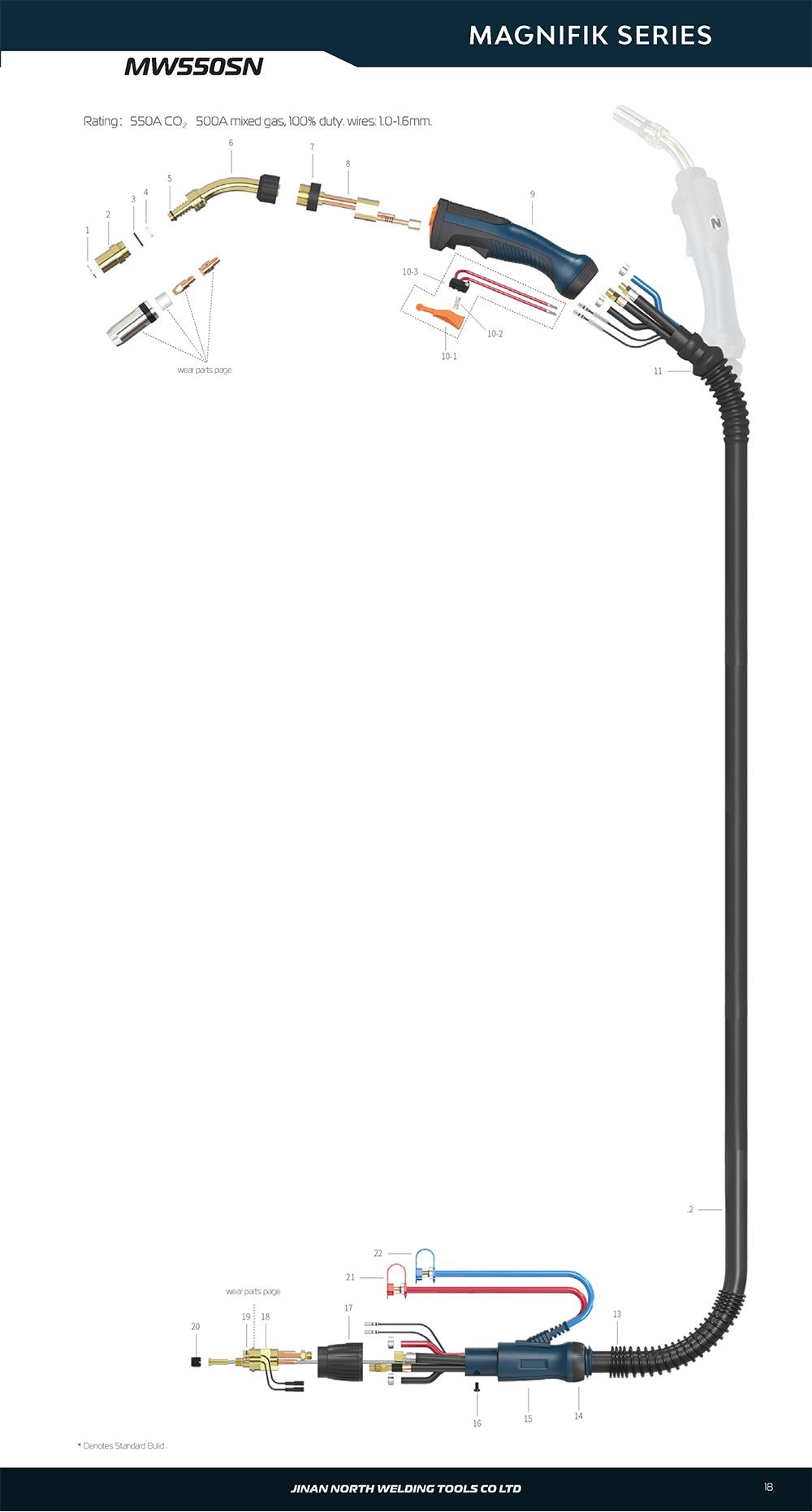

Components
| No. | Part Number | Description |
| 1 | 3056945 | Insulating Washer |
| 2 | 3007155001 | Nozzle Holder |
| 3 | 305674 | O-ring |
| 4 | 3007139 | Center Ring |
| 5 | 305682 | O-ring |
| 6 | 300915 | SN Swan Neck |
| 7 | 310009 | SN Protecting ring |
| 8 | 300095 | SN Connection part |
| 9 | N8M9900 | Handle |
| 10-1 | N8M9350 | Trigger |
| 10-2 | 3611192 | Spring For Switch |
| 10-3 | TRJ0002 | Micro Switch |
| 11 | 350665 | Cable Suppport With Ball And Socket Joint |
| 12 | 258413 | Cable Assembly 3m |
| 258414 | Cable Assembly 4m | |
| 258415 | Cable Assembly 5m | |
| 13 | 8M9501 | Back Cable Support Spring |
| 14 | N8M9420 | Locking Ring |
| 15 | N8M9400 | Back Handle |
| 16 | Q210406B | Screw M4x6 |
| 17 | N8M9419 | Gun Plug Nut |
| 18 | TRU5001 | Euro Gun Plug |
| 19 | Q50410 | O-ring 4x1 |
| 20 | EU1011A | Plastic Nut M10x1 |
| 21 | 258701 | Waterspot Red |
| 22 | 258702 | Waterspot Blue |
