- Magnifik Series Best-Premium design, materials. construction and consumables with rubber grips.
-
- Selekt Series Better - Superior design, materials, construction and consumables with long life microswitch.
-
- Klasik Series Good value - Solid and time tested design, materials and construction with good quality copper leaf spring trigger.

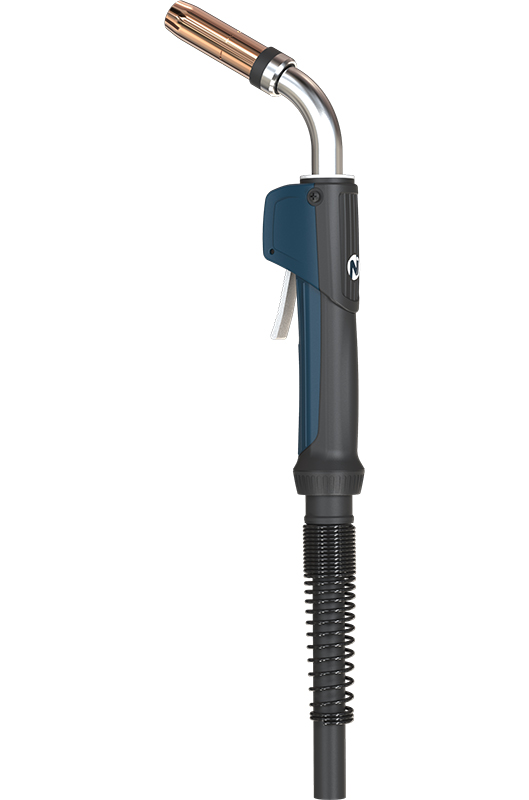

MTR 300 Push-Pull Welding Torch
Technical Data
Cooling Method: Air-Cooled
Rating:co2: 300A
Rating: Mixed Gas: 200A
Duty Cycle: 60%
Wire Size: 0.8-1.2
Fitting Style: TWECO/MILLER/EURO
Model
| Description | Length | Part Number |
| Tweco Fitting | 10ft | MTR300-10T |
| 12ft | MTR300-12T | |
| 15ft | MTR300-15T |
Components
| No. | Part Number | Description | No. | Part Number | Description |
| 1 | 401-6-62 | Nozzle | 15 | Q1705 | Gasket |
| 2 | 403-1-035 | Contact Tip | 16 | TRG3510 | Cable Assembly 10ft |
| 3 | 404-3 | Tip Adaptor | TRG3512 | Cable Assembly 12f | |
| 4 | 402-11 | Insulator | TRG3515 | Cable Assembly 15ft | |
| 5 | 305-60 | Swan Neck Assembly | 17 | LAK-354 | 2Pin Plug Assembly |
| 6 | TRG4213 | Torch Body Assembly | 18 | 194 | Connector Tab Assembly |
| 7 | NH0107 | Handle | 19 | NH020401 | Rear Housing |
| 8 | N_PL | Label | 20 | TRG4312 | Connector Plug |
| 9 | NH010704 | Trigger Housing | 21 | TU0007 | Tweco Connector Plug |
| 10 | N411-1 | Trigger Switch | 22 | TRG4215 | Insulator Cap |
| 11 | NH010707 | Trigger | 23 | 44-3545-10 | Liner 10ft,0.9-1.2mm |
| 12 | NH010706 | Ball Joint | 44-3545-12 | Liner 12ft.0.9-1.2mm | |
| 13 | 142SBJ02 | Cable Support Spring | 44-3545-15 | Liner 15ft,0.9-1.2mm | |
| 14 | Q210508BP | Screw M5x8 |
