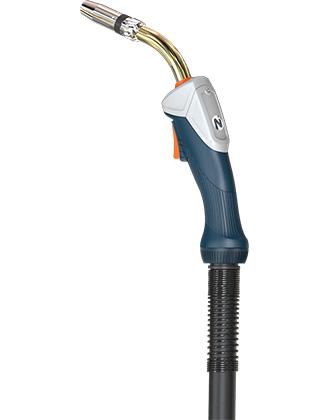

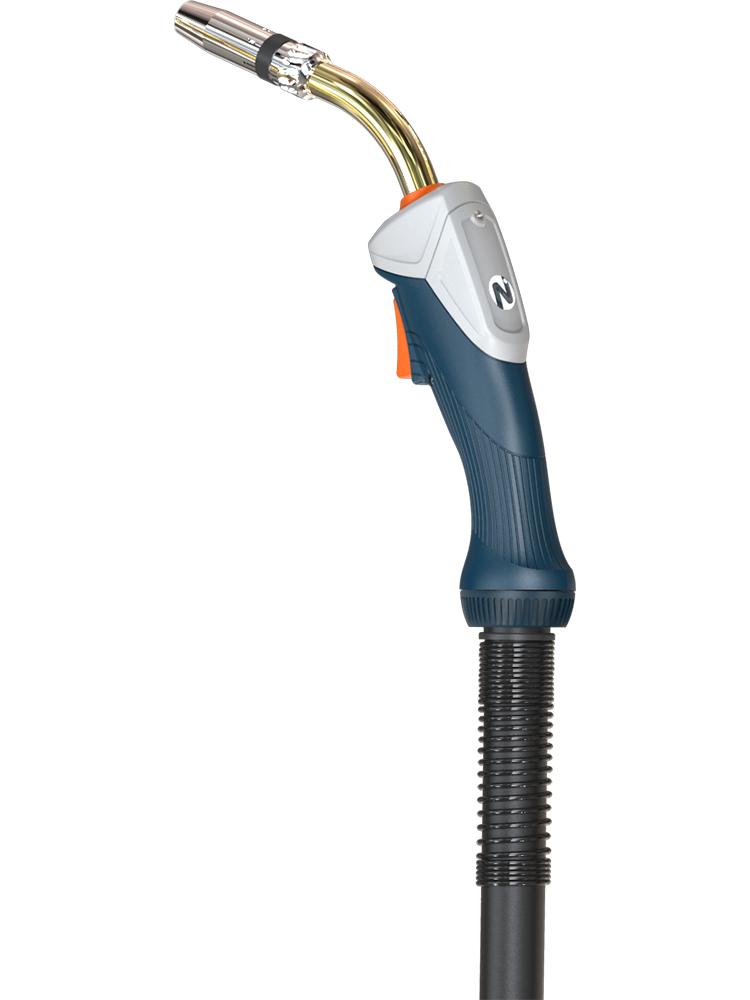

SN 240F MIG/MAG Welding Gun
Technical Data
Cooling Method: Water-Cooled
Rating: C02: 300A
Rating: Mixed Gas: 270A
Duty Cycle: 100%
Wire Size: 0.8-1.2
Model
| Description | Length | Part Number |
| SN 240F 4CE Welding Gun c/w Euro Fitting | 3M | SN 240F-3E |
| 4M | SN 240F-4E | |
| 5M | SN 240F-5E |

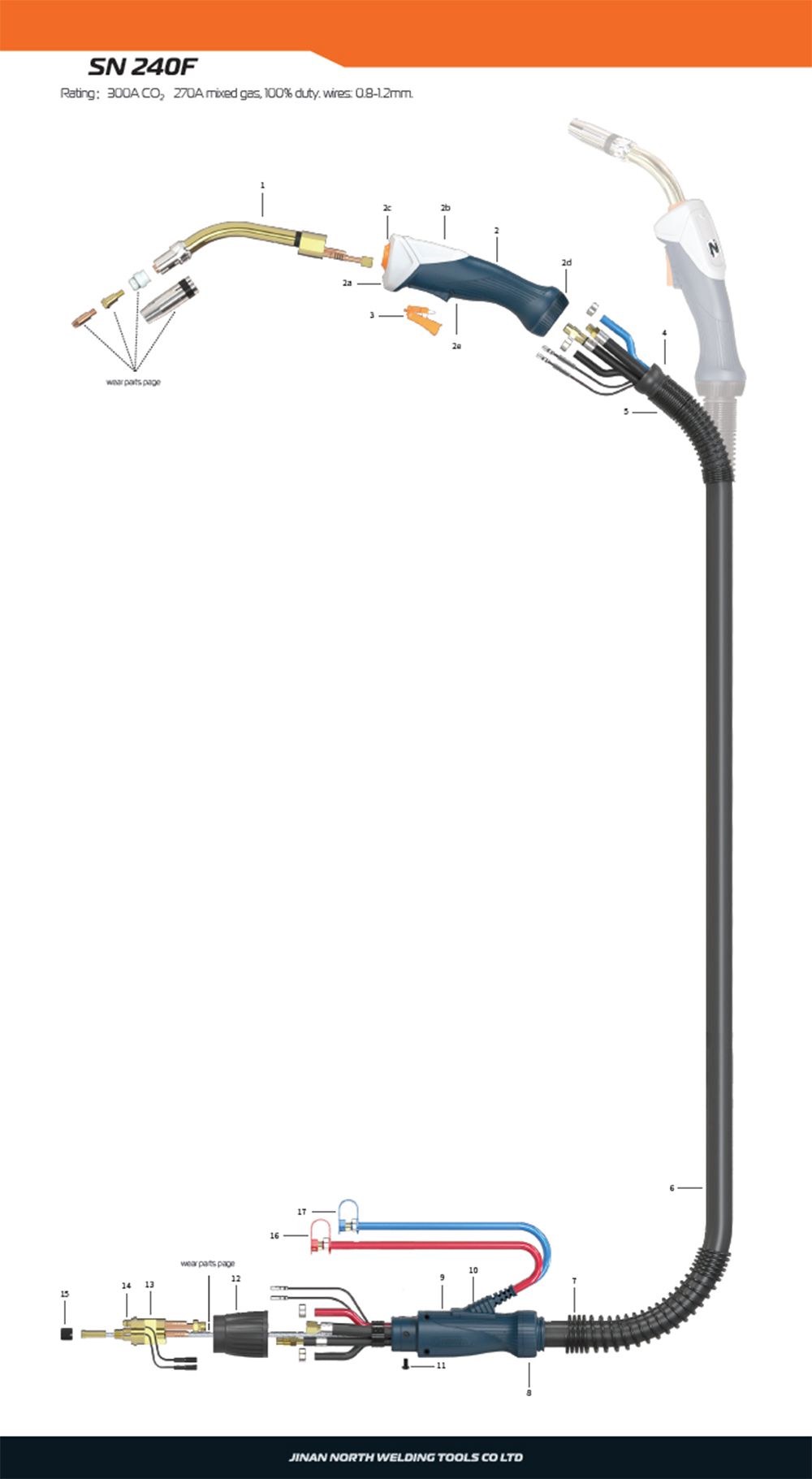

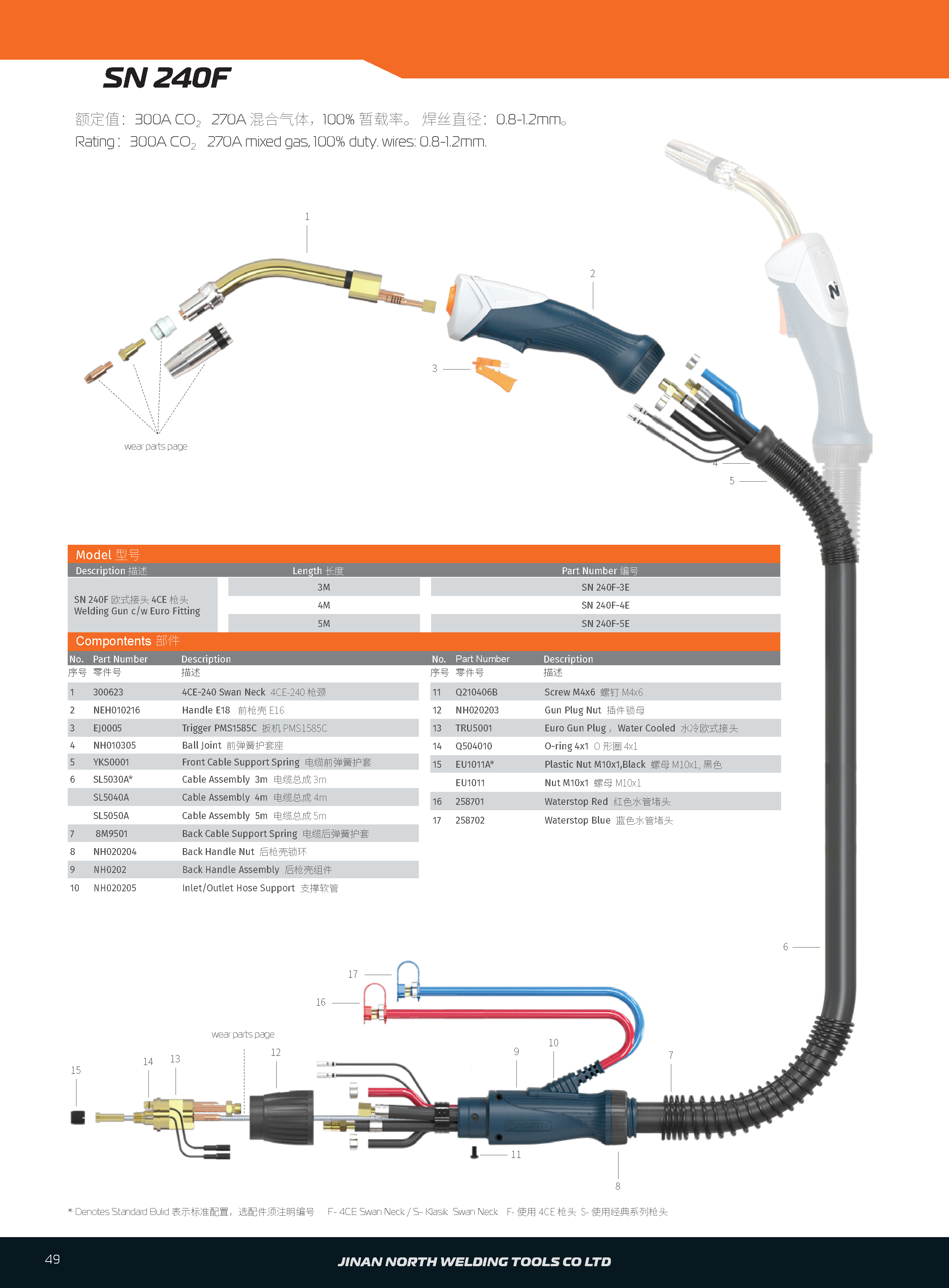

Components
| No. | Part Number | Description |
| 1 | 300623 | 4CE-240 Swan Neck |
| 2 | NH010201 | Torch Handle DIY R |
| NH010202 | Torch Handle DIY L | |
| 2a | NH010203 | Front Cover |
| 2b | NH010205 | PCB Holder |
| 2c | NH010206 | Adaptor 16mm |
| 2d | NH010208 | Locking Nut |
| 2e | Q260312B | ST Screw 3x12 |
| 3 | EJ0005 | Trigger PMS1585C |
| 4 | NH010305 | Ball Joint |
| 5 | YKS0001 | Front Cable Support Spring |
| 6 | SL5030A* | Cable Assembly 3m |
| SL5040A | Cable Assembly 4m | |
| SL5050A | Cable Assembly 5m | |
| 7 | 8M9501 | Back Cable Support Spring |
| 8 | NH020204 | Back Handle Nut |
| 9 | NH0202 | Back Handle Assembly |
| 10 | NH020205 | Inlet/Outlet Hose Support |
| 11 | Q210406B | Screw M4x6 |
| 12 | NH020203 | Gun Plug Nut |
| 13 | TRU5001 | Euro Gun Plug ，Water Cooled |
| 14 | Q504010 | O-ring 4x1 |
| 15 | EU1011A* | Plastic Nut M10x1,Black |
| 16 | 258701 | Waterstop Red |
| 17 | 258702 | Waterstop Blue |
* IMPORTANT: Must indicate F- 4CE swan neck / S- Klasik swan neck welding gun to classify standard configuration.
