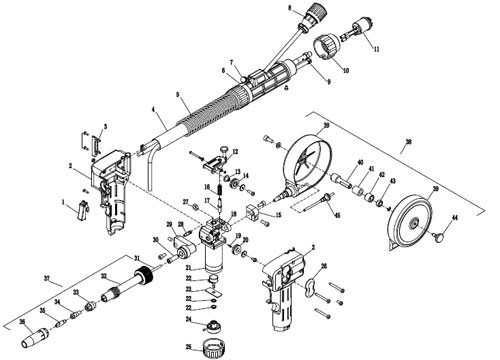

No. | Part No. | Description |
1 | EJ0003 | Trigger Switch |
2 | LMH2001 | Handle |
3 | LMT2001 | Spool Cover Assembly |
4 | LMT2016 | Spool Defense Shell |
5 | LMT2016 | Spool Shaft |
6 | LMT2014 | Bushing Resistance Rubber |
7 | LMT2013 | Location Bushing |
8 | LMT2012 | Adjusting Nut |
9 | LMT2011 | Locking Screw |
10 | LGH2011 | Transparent Cover, Drive Roll |
11 | LGX2016 | Push Roll 0.030/0.035 inch (0.8/0.9mm) |
12 | LGX2015 | Bearing |
13 | LGX2014 | Press Arm with Shaft |
14 | LGX2012 | Press Arm Spring |
15 | LGX2011 | Press Arm Bolt |
16 | LGF2111 | Nut |
17 | LX2040 | Gearbox Assembly |
18 | LMX2011 | Inlet Guide |
19 | LGX2018 | Key |
20 | LGX2019 | Wire Feed Roller 0.030/0.035 inch (0.8/0.9mm) |
21 | LZ3601 | Motor |
22 | 196827 | Torch Tube Assembly |
23 | 186405 | Nozzle |
24 | 186406 | Contact Tip 0.035mm |
186419 | Contact Tip 0.030mm | |
25 | 186409 | Gas Diffuser |
26 | 186408 | Gas Nipple |
27 | 194633 | Radiator |
28 | 196847 | Locking Nut |
29 | 206363 | Liner Kit |
30 | 196849 | Head Tube Assembly |
31 | LGK2001 | Conducting Board |
32 | LGH2032 | Rubber Sheath |
33 | LGH2013 | Handle Lock Nut |
34 | LMS2101 | Spring Cable Support |
35 | LML2020 | Cable Assembly 20ft |
36 | 225559 | Cable Sheath |
37 | LMV0004 | Four-pin Plug |

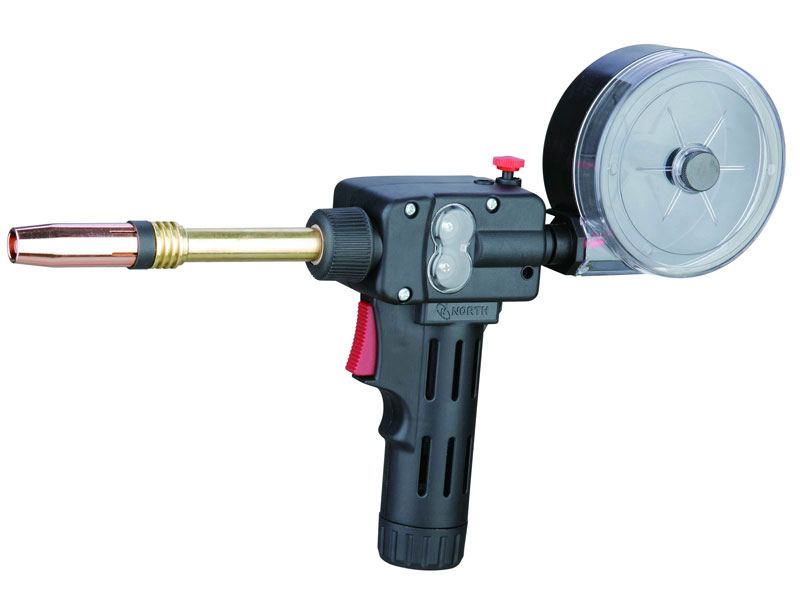

North is an experienced MAG spool gun manufacturer and supplier in China. We provide various types of products such as wire welding spool gun, fixed nozzle welding gun, 120° tilting turntable positioner, and tank turning roll.
