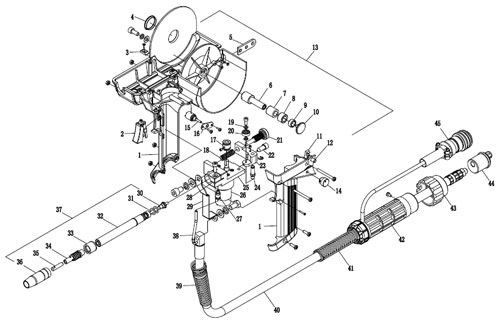

No. | Part No. | Description | No. | Part No. | Description |
1 | LWH2101 | Torch Handle | 24 | LWZ2012 | Press Arm Shaft |
2 | LGJ2003 | Trigger Switch | 25 | LWZ2019 | Bracket |
3 | LWH2111 | Block | 26 | LZ2830 | Motor and Gear Box (30:1) |
4 | LWH2112 | Cover | LZ2820 | Motor and Gear Box (20:1) | |
5 | LWH2116 | Hanger Hook | 27 | Q9104 | Gas Connector |
6 | LWT2015 | Spool Shaft | 28 | LWZ2000 | Wire Feeder Assembly |
7 | LMT2014 | Bushing Resistance Rubber | 29 | LWK2001 | Conducting Bar |
8 | LWT2113 | Location Bushing | 30 | LWR11170 | Liner Assembly |
9 | LMT2012 | Adjusting Nut | 31 | Q507618 | O Ring 7.65×1.78 |
10 | LWT2011 | Locking Screw | 32 | LWF1111 | Conductor Tube |
11 | LWH2113 | Hook | 33 | EF1011 | Insulation Sleeve |
12 | LWH2114 | Press Button | 34 | LWD1101 | Diffuser Coupled with Spring |
13 | LWH2100 | Handle Assembly(1-12) | 35 | EB1108 | Contact Tip 0.8mm |
14 | LWH2115 | WFS Control Knob | EB1109 | Contact Tip 0.9mm | |
15 | Q8110 | Potentiometer 10KΩ | EB1110 | Contact Tip 1.0mm | |
Q8105 | Potentiometer 5KΩ | 36 | EA1212 | Nozzle 12mm | |
Q8101 | Potentiometer 1KΩ | 37 | LWF11180 | Torch Neck 180° | |
16 | LWI2011 | Potentiometer Housing | 38 | LWW2101 | Internal Gas Hose |
17 | LWZ2011 | Drive Roll 0.8/0.9 | 39 | LWS2101 | Front Spring Cable Support |
LWZ2020 | Drive Roll 1.0/1.2 | 40 | LWL2140 | Cable Assembly 4m | |
18 | LWZ2018 | Press Arm Spring | 41 | ES2201 | Back Spring Cable Support |
19 | LWZ2016 | Bushing | 42 | EH2201 | Back Handle |
20 | LWZ2017 | Bearing | 43 | EP2001 | Torch Plug Nut |
21 | LWZ2015 | Press Arm Bolt | 44 | LWU2001 | Euro Torch Plug without Control |
22 | LWZ2014 | Inlet Guide | LTU2002 | Euro Torch Plug | |
23 | LWZ2013 | Press Arm | 45 | MV0010 | 10-pin Connector |

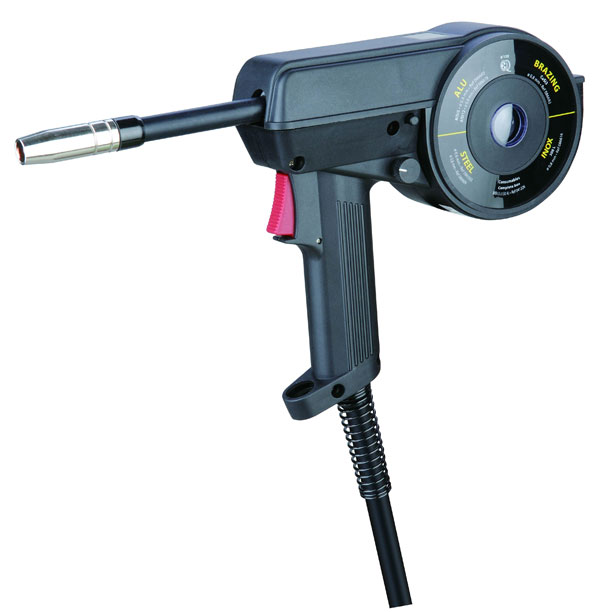

As a specialized wire welding spool gun manufacturer and supplier in China, we also provide small welding positioner, gas metal arc welding torch, welding copper air cooling welding gun, and welding pipe rotator, among others.
