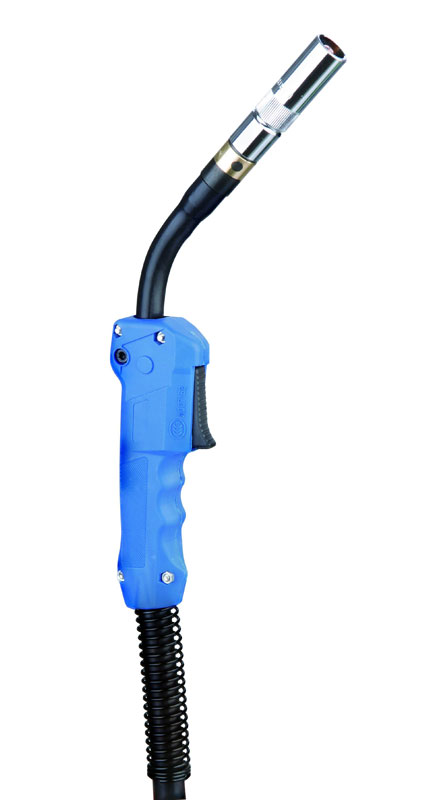

Technical Parameters
Rated Current | CO₂ | 350A |
Mixed Gas | 300A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 1.0-1.4mm |
Model
Description | Part No. |
3m | 4m | 5m |
Welding Gun Coupled with OTC Fitting | ND-350D-3 | ND-350D-4 | ND-350D-5 |
Nozzle
No. | Part No. | Description |
A | KA3116 | 16mm |
Contact Tip
No. | Part No. | Description |
B | KB2208 | 0.8mm M6 Ecu |
KB2210 ﹡ | 1.0mm M6 Ecu |
KB2212 | 1.2mm M6 Ecu |
KB2208L | 0.8mm M6 CuCrZr |
KB2210L | 1.0mm M6 CuCrZr |
KB2212L | 1.2mm M6 CuCrZr |
Liner
No. | Part No. | Description |
C | DR3212-3 ﹡ | Steel Liner 1.0-1.2mm×3m |
DR5216-3 | Steel Liner 1.2-1.6mm×3m |
DR3312-3 | Teflon Liner 1.0-1.2mm×3m |

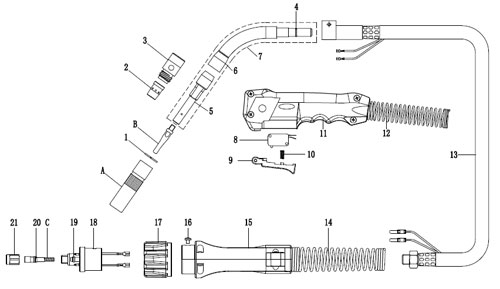

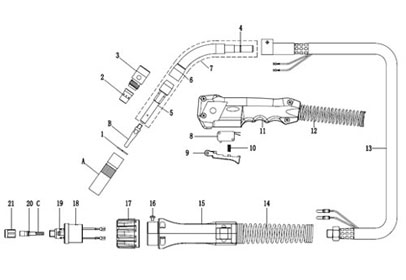

Component
No. | Part No. | Description |
1 | Q1115 | Gasket |
2 | KD3001 | Diffuser |
3 | KE3001 ﹡ | Insulator |
DE3001 | Insulator |
4 | Q508015S | O Ring 8×15 |
5 | DF3211 | Front Torch Tube |
6 | DF3212 | Conductor Tube 55° |
7 | DF3225 | Torch Neck Assembly 55° |
8 | Q711 ﹡ | Switch, OMRON |
Q721 | Switch |
9 | DJ3001 | Trigger |
10 | Q60512 | Trigger Spring |
11 | DH3102 | Handle |
12 | DS3101 | Front Spring Cable Support |
13 | DL3030 | Cable Assembly 3m |
14 | DS3201 | Back Spring Cable Support |
15 | DH3202 | Back Handle |
16 | EH2211 | Screw M4×6 |
17 | DP3001 | Torch Plug Nut |
18 | DU3001 | OTC Torch Plug |
19 | Q531518 | O Ring 3.15×1.8 |
20 | Q504018 | O Ring 4×1.8 |
21 | DU3013 | Nut |
Note: * denotes standard build.
