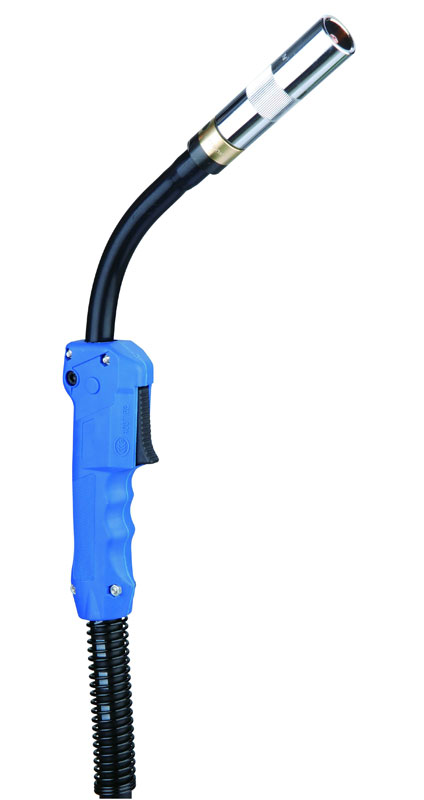

500A Air Cooled CO2 Welding Gun

500A Air Cooled CO2 Welding Gun
Technical Parameters
Rated CurrentCO2500A
Mixed Gas420A
Duty Cycle60%
Diameter of Applicable Welding Wire1.2-1.6mm
Description Part No.
3 m4m5m
Welding Gun Coupled with OTC Fitting ND-500D-3 ND-500D-4 ND-500D-5
No.Part No. Description
AKA5119 19mm
Contact Tip
No.Part No.Description
BKB2212 * 1.2mm M6 Ecu
KB2214 1.4mm M6 Ecu
KB2216 1.6mm M6 Ecu
KB2212L 1.2mm M6 CuCrZr
KB2214L 1.4mm M6 CuCrZr
KB2216L 1.6mm M6 CuCrZr
No.Part No. Description
CDR3212-3 Steel Liner 1.0-1.2mm×3m
DR5216-3 * Steel Liner 1.2-1.6mm×3m
DR5316-3 Teflon Liner 1.2-1.6mm×3m

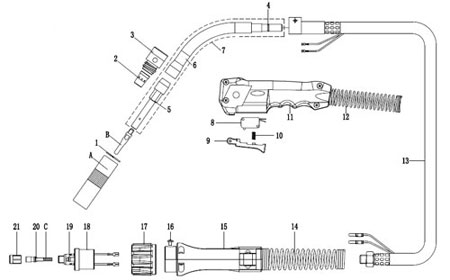

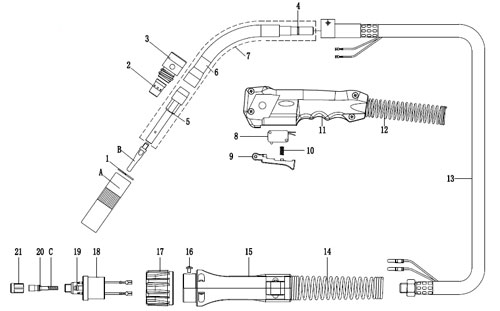

No.Part No. Description
1Q1119 Gasket
2KD5001 Diffuser
3KE5001 * Insulator
DE5001 Insulator
4Q508015S O Ring 8×1.5
5DF5211 Front Torch Tube
6DF5212 Conductor Tub 55°
7DF5255 Torch Neck Assembly 55°
8Q711 * Switch, OMRON
Q721 Switch
9DJ3001 Trigger
10Q60512 Trigger Spring
11DH3102 Handle
12DS3101 Front Spring Cable Support
13DL5030 Cable Assembly 3m
14DS3201 Back Spring Cable Support
15DH3202 Back Handle
16EH2211 Screw M4×6
17DP3001 Torch Plug Nut
18DU3001 OTC Torch Plug
19Q531518 O Ring 3.15×1.8
20Q504018 O Ring 4×1.8
21DU3013 Nut

Note: * denotes standard build.

North is an experienced 500A air cooled CO2 welding gun manufacturer and supplier in China. Our company provides a wide range of products, including fixed nozzle welding gun, light duty rotary turntable welding positioner, welding pipe rotator, and more.
