Technical Parameters
Model | NK115 |
Rated Current | 450A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 2.0-3.0mm (5/64-0.120 inch) |
Contact Tip
No. | Part No. | Description |
A | ZB4120 | 5/64inch / 2.0mm Ecu |
ZB4124* | 3/32inch /2.4mm Ecu |
ZB4127 | 7/64inch /2.7mm Ecu |
ZB4130 | 0.12inch /3.0mm Ecu |
ZB4120L | 5/64inch /2.0mm CuCrZr |
ZB4124L | 3/32inch /2.4mm CuCrZr |
ZB4127L | 7/64inch /2.7mm CuCrZr |
ZB4130L | 0.12inch /3.0mm CuCrZr |
Gun Neck
No. | Part No. | Description |
B | ZF4225 | 25° |
ZF4245 | 45° |
ZF4290* | 90° |
Liner
No. | Part No. | Description |
C | ZR3224-3* | 1.6-2.4mm×3m |
ZR4230-3 | 2.4-3.0mm×3m |

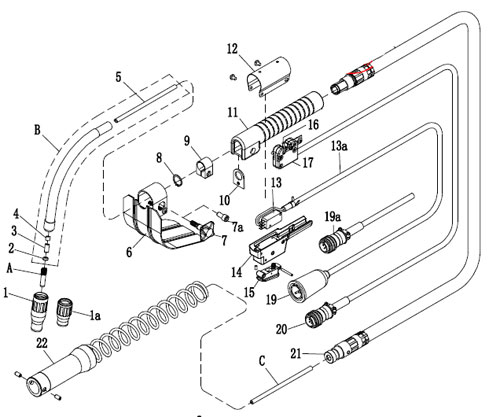

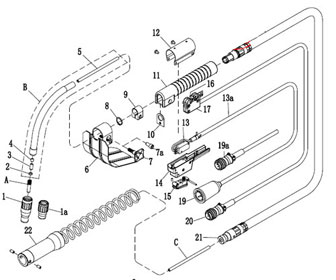

Component
No. | Part No. | Description |
1 | ZN4101 | Insulated Nozzle 2 3/4inch Stick Out |
1a | ZN4102 | Insulated Nozzle Stick Out |
2 | ZF4211 | Locking Screw |
3 | ZF4212 | Steel Insert |
4 | ZF4213 | Ceramic Insert |
5 | ZF4214 | Liner |
6 | ZK4001 | Handle Protector |
7 | ZT3001 | Locking Screw |
7a | ZT3002 | Socket Head Cap Screw |
8 | Q1316 | Ring |
9 | ZM3001 | Clamp |
10 | ZH4010 | Spatter Shield |
11 | ZH3101 | Handle |
12 | ZJ3014 | Switch Housing |
13 | Q712 | Switch, OMRON, Waterproof |
13a | ZJ3015 | Switch Assembly with Plug |
14 | ZJ3001 | Trigger Housing Assembly |
15 | ZJ3011 | Trigger |
16 | Q723 | Button Switch |
17 | ZJ3013 | Attenuating Switch |
18 | ZL4130 | Cable Assembly 3m |
19 | LV0002* | 2 Pin Plug (LN-7, 8, 925) |
19a | ZV0005 | 5 Pin Plug (LN-7, 8, 925) |
20 | ZV3004 | 4 Pin Plug |
21 | ZU3001 | Lincoln Fitting |
22 | ZH3201 | Insulator Sleeve with Spring |
Note: * denotes standard build.
As a professional self shielding wire welding torch manufacturer and supplier in China, North offers a broad range of products, including air cooled MIG welding gun, light manual tilting welding positioner, self aligning welding rotator, wire welding spool gun, and more.
