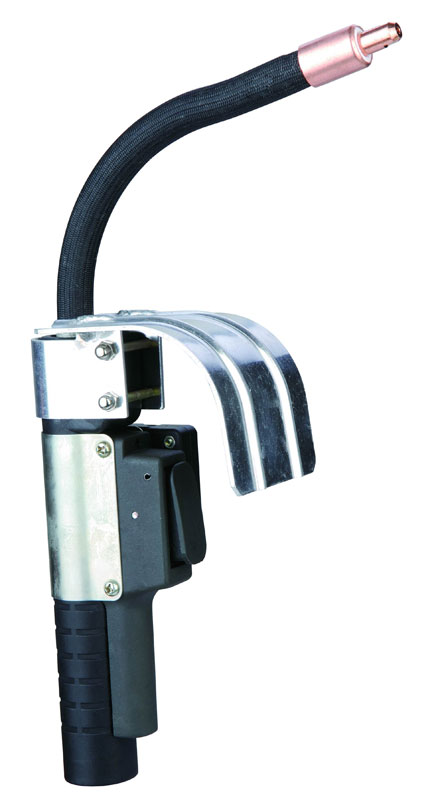

Technical Parameters
Model | NK126 |
Rated Current | 350A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 1.0-2.4mm (0.035-3/32 inch) |
Contact Tip
No. | Part No. | Description |
A | ZB3116 | 1.6mm Ecu |
ZB3118 | 1.8mm Ecu |
ZB3120 | 2.0mm Ecu |
ZB3124 | 2.4mm Ecu |
ZB3116L | 1.6mm CuCrZr |
ZB3118L | 1.8mm CuCrZr |
ZB3120L | 2.0mm CuCrZr |
ZB3124L | 2.4mm CuCrZr |
Gun Neck
No. | Part No. | Description |
B | ZF3230 | 30°, 195mm |
ZF3267 | 67°, 160mm |
ZF3290 | 90°, 170mm |
Liner
No. | Part No. | Description |
C | ZR3224-3 | Steel liner 1.6-2.4mm ×3m |

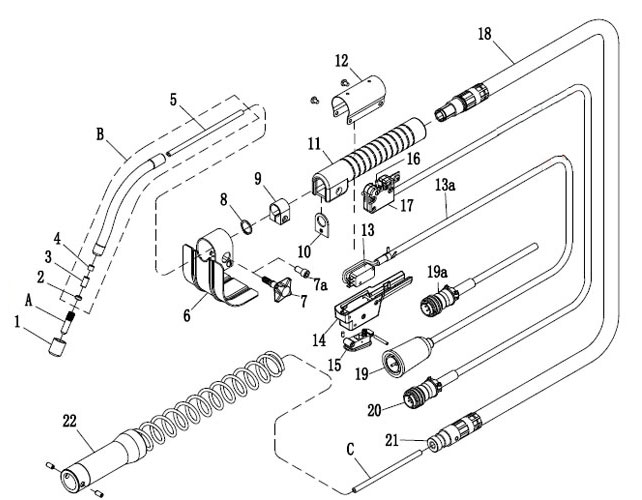

Component
No. | Part No. | Description |
1 | ZN3101 | Thread Protector |
2 | ZF3211 | Locking Screw |
3 | ZF3212 | Steel Insert |
4 | ZF3213 | Ceramic Insert |
5 | ZF32163 | Liner 163mm |
ZF32128 | Liner 128mm |
ZF32138 | Liner 138mm |
6 | ZK3001 | Handle Protector |
7 | ZT3001 | Locking Screw |
7a | ZT3002 | Socket Head Cap Screw |
8 | Q1316 | Ring |
9 | ZM3001 | Clamp |
10 | ZH3011 | Spatter Shield |
11 | ZH3101 | Handle |
12 | ZJ3014 | Switch Housing |
13 | Q712 | Switch, OMRON, Waterproof |
13a | ZJ3015 | Switch Assembly with Plug |
14 | ZJ3001 | Trigger Housing Assembly |
15 | ZJ3011 | Trigger |
16 | Q723 | Button Switch |
17 | ZJ3013 | Attenuating Switch |
18 | ZL3130 | Cable Assembly 3m, Liner Replaceable |
ZL3230 | Cable Assembly 3m, Not Replaceable |
19 | LV0002 | 2 Pin Plug(LN-7, 8, 925) |
ZV0005 | 5 Pin Plug(LN-7, 8, 925) |
ZV3003 | 3 Pin Plug(LN-22, 23) |
20 | ZV3004 | Control Cable Assembly Coupled with 4 Pin Plug |
21 | ZU3001 | Lincoln Fitting |
22 | ZH3201 | Insulator Sleeve with Spring |
Note: * denotes standard build.
