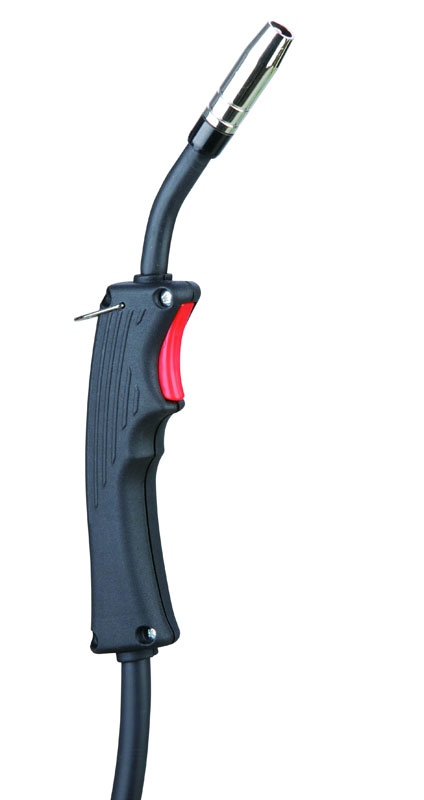

QTB-100AF Air Cooled Welding Torch (European Gun Neck)

QTB-100AF Air Cooled Welding Torch (European Gun Neck)
Technical Parameters
ModelQTB-100AF
Rated Current (Mixed Gas Cooling)100A
Duty Cycle35%
Diameter of Applicable Welding Wire0.6-1.0mm
Model
Description Part No.
2.5m3m
Welding Gun Coupled with Euro Gun Neck NV-100E-2.5 NV-100E-3
Welding Gun Coupled with Tweco Gun Neck NV-100T-2.5 NV-100T-3
Nozzle
No.Part No.Description
AEA1212 Nozzle 12mm
B21-50* Self Insulated Nozzle
21-50F
CLA8201 Self Shielding Nozzle
Contact Tip
No.Part No.Description
DEB1106 0.6mm M6 ×25Ecu
EB1108* 0.8mm M6 ×25 Ecu
EB1109 0.9mm M6 ×25 Ecu
EB1110 1.0mm M6 ×25 Ecu
E11-23 0.023 inch / 0.6mm Ecu
11-30* 0.030 inch /0.8mm Ecu
11-35 0.035 inch /0.9mm Ecu
11-40 0.040 inch /1.0 mm Ecu
Liner
No.Part No. Description
F1210-2.5 Steel Liner 0.6-1.0mm ×2.5m
1210-3* Steel Liner 0.6-1.0mm ×3m

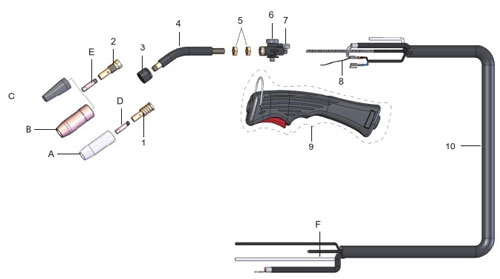

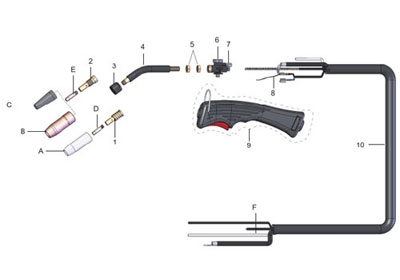

Component
No.Part No. Description
1FLD9002 Diffuser Coupled with Spring
2FD9001 Diffuser
3EF1011 Insulator Sleeve
4FF9235* Conductor Tube 35 °
FF9245 Conductor Tube 45 °
5FF9214 Nut M8 ×1
6FL9011 Gas Valve
7FL9027 Gas Pipe Connector
8FJ9011 Trigger Shrapnel
9FH9101 Gun Handle Assembly
10FL9025 Cable Assembly 0.6 -1.0mm × 2.5m
FL9030 Cable Assembly 0.6 -1.0m m × 3m

Note: * denotes standard build.

Our company is a specialized air cooled welding torch (European gun neck) manufacturer and supplier in China. We offer a wide range of products, including air cooled gas welding gun, air cooling MIG/MAG welding torch, MIG spool gun, and more.
