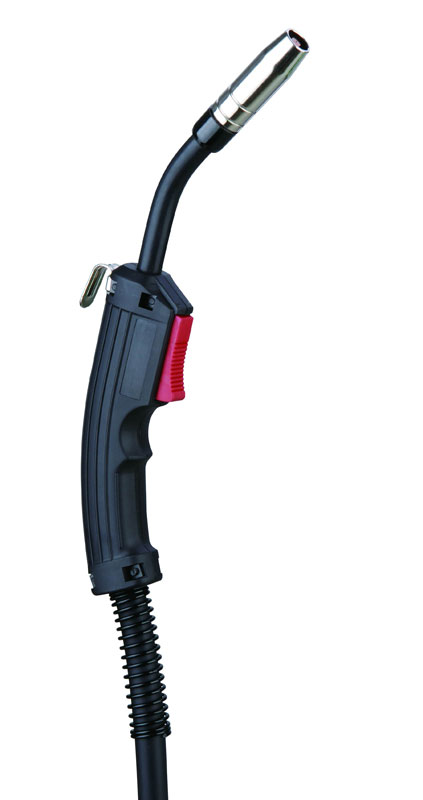

Technical Parameters
Model | QTB-90AF |
Rated Current (Mixed Gas Cooling) | 90A |
Duty Cycle | 35% |
Diameter of Applicable Welding Wire | 0.6-1.0mm |
Model
Description | Part No. |
2.5m | 3m |
Welding Gun Coupled with Euro Gun Neck | NVA-90E-2.5 | NVA-90E-3 |
Welding Gun Coupled with Tweco Gun Neck | NVA-90T-2.5 | NVA-90T-3 |
Nozzle
No. | Part No. | Description |
A | EA1212 | Nozzle 12mm |
B | 21-50* | Self Insulated Nozzle |
21-50F |
Contact Tip
No. | Part No. | Description |
D | EB1106 | 0.6mm M6 ×25 Ecu |
EB1108* | 0.8mm M6 ×25 Ecu |
EB1109 | 0.9mm M6 ×25 Ecu |
EB1110 | 1.0mm M6 ×25 Ecu |
E | 11-23 | 0.023 inch /0.6mm Ecu |
11-30* | 0.030 inch /0.8mm Ecu |
11-35 | 0.035 inch /0.9mm Ecu |
11-40 | 0.040 inch /1.0 mm Ecu |
Liner
No. | Part No. | Description |
F | FLR1210-2.5 | Steel Liner 0.6-1.0mm ×2.5m |
FLR1210-3* | Steel Liner 0.6-1.0mm ×3m |
Component

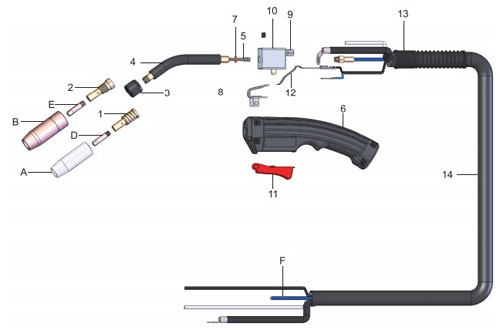

No. | Part No. | Description |
1 | FLD9002 | Diffuser Coupled with Spring |
2 | FD9001 | Diffuser |
3 | EF1011 | Insulator Sleeve |
4 | FLF9235* | Conductor Tube 35° |
FLF9245 | Conductor Tube 45° |
5 | FLR91170 | Front Liner |
6 | FLH9111 | Front Handle |
7 | Q504219S | O Ring 4.2 ×1.9 |
8 | EG0002 | Hanger Hook |
9 | FL9027 | Gas Pipe Connector |
10 | FLL9011 | Gas Valve |
11 | FLH9112 | Trigger |
12 | FLH9021 | Trigger Shrapnel |
13 | ES2102 | Front Spring Cable Shrapnel |
14 | FLL9025 | Cable Assembly 2.5m |
FLL9030 | Cable Assembly 3m |
Note: * denotes standard build. Customer should mark out the part number when choosing the accessories.
