Technical Parameters
Model | QTB-200A |
Rated Current | CO₂ | 200A |
Mixed Gas | 180A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 0.8-1.2mm |
Model
Description | Size | Part No. |

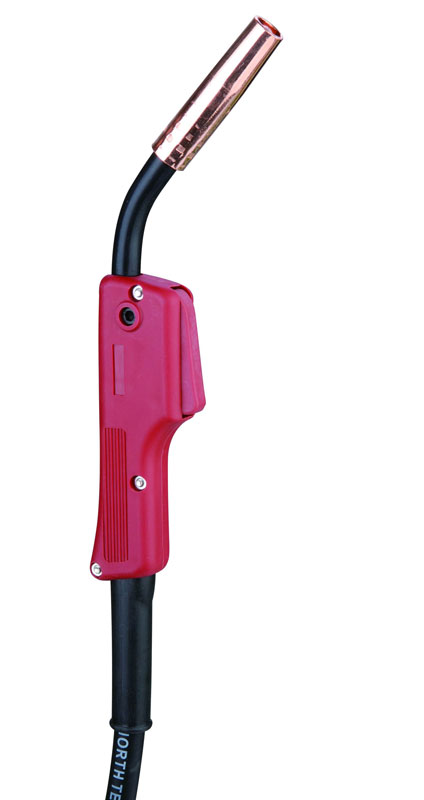

Welding Gun Coupled with Panasonic Fitting (Panasonic 200A) | 3m | NS-200K-3 |
4m | NS-200K-4 |
5m | NS-200K-5 |
Nozzle
No. | Part No. | Description |
A | KA2213 | 13mm |
Contact Tip
No. | Part No. | Description |
B | KB2208* | 0.8mm M6 Ecu |
KB2210 | 1.0mm M6 Ecu |
KB2212 | 1.2mm M6 Ecu |
KB2208L | 0.8mm M6 CuCrZr |
KB2210L | 1.0mm M6 CuCrZr |
KB2212L | 1.2mm M6 CuCrZr |
Liner
No. | Part No. | Description |
C | KR2210-3* | Steel Liner 0.8-1.0mm×3 |
KR2310-3 | Teflon Liner 0.8-1.0mm×3 |

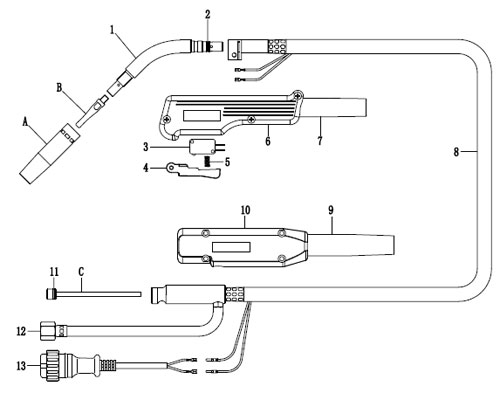

Component
No. | Part No. | Description |
1 | KF2245* | Gun Neck 45° |
KF21180 | Gun Neck 180° |
2 | Q508015S | O Ring 8×1.5 |
3 | Q724 | Switch |
4 | KJ2003 | Trigger |
5 | Q60512 | Trigger Spring |
6 | KH2103 | Handle |
7 | KS2101 | Front Cable Support |
8 | KL2030 | Cable Assembly 3m |
9 | KS2201 | Rear Cable Support |
10 | KH2203 | Back Handle |
11 | Q508015 | O Ring 8×1.5 |
12 | KW0001 | Gas Hose Assembly |
13 | KV0002 | Control Cable Assembly Coupled with Plug |
Note: * denotes standard build.
North is an experienced air cooled welding torch (Panasonic 200A) manufacturer and supplier in China. In addition to wire feed welding gun / welding torch, we also provide welding rotators, push pull gun, light duty welding positioner, and more.
