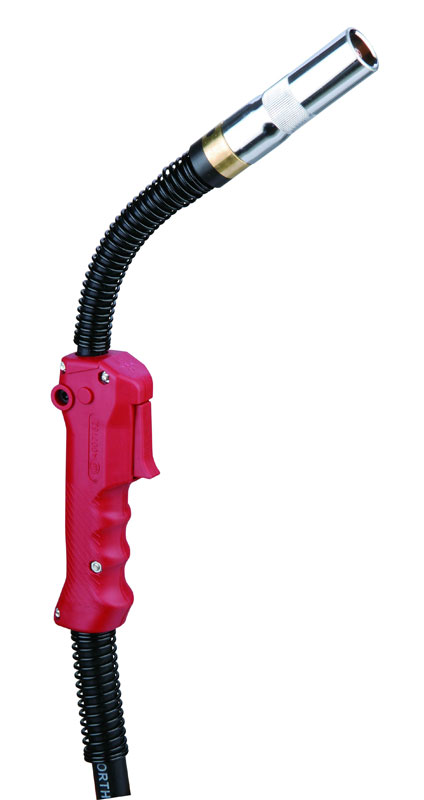

Technical Parameters
Model | QTB-600A |
Rated Current | CO₂ | 600A |
Mixed Gas | 500A |
Duty Cycle | 35% |
Diameter of Applicable Welding Wire | 1.2-2.0mm |
Model
Description | Size | Part No. |
Welding Gun Coupled with Panasonic Fitting | 3m | NS-600K-3 |
4m | NS-600K-4 |
5m | NS-600K-5 |
Nozzle
No. | Part No. | Description |
A | KA6119* | 19mm |
Contact Tip
No. | Part No. | Description |
B | KB2212 | 1.2mm M6 Ecu |
KB2214 | 1.4mm M6 Ecu |
KB2216 | 1.6mm M6 Ecu |
KB6216* | 1.6mm M8 Ecu |
KB6220 | 2.0mm M8 CuCrZr |
KB6216L | 1.6mm M8 CuCrZr |
KB6220L | 2.0mm M8 CuCrZr |
Liner
No. | Part No. | Description |
C | KR5216-3 | Steel Liner 1.2-1.6mm×3m |
KR6220-3* | Steel Liner 1.6-2.0mm×3m |
KR5316-3 | Teflon Liner 1.2-1.6mm×3m |

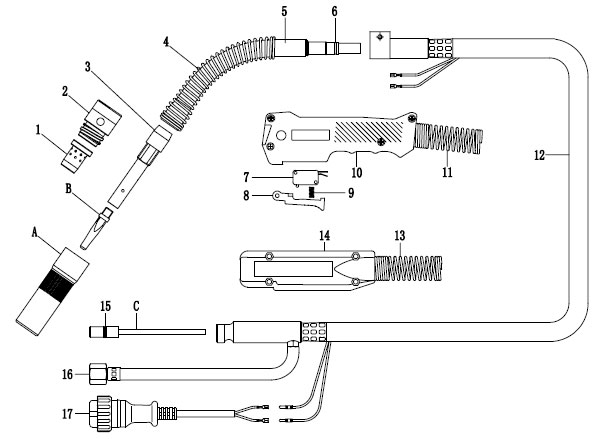

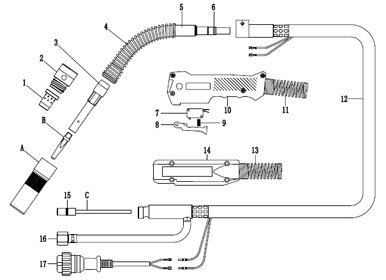

Component
No. | Part No. | Description |
1 | KD6001 | Diffuser |
2 | KE6001 | Insulator |
3 | KF6031 | Front Gun Tube M6 |
KF6032* | Front Gun Tube M8 |
4 | KF6012 | Spring Neck Support |
5 | KF5255* | Gun Neck 55° |
KF51180 | Gun Neck 180° |
6 | Q508015S | O Ring 8×1.5 |
7 | Q711* | Switch, OMRON |
Q721 | Switch |
8 | KJ3003 | Trigger |
9 | Q60512 | Trigger Spring |
10 | KH3103 | Handle |
11 | KS3101 | Front Spring Cable Support |
12 | KL3030 | Cable Assembly 3m |
13 | KS3201 | Back Spring Cable Support |
14 | KH3203 | Back Handle |
15 | Q506318 | O Ring 6.3×1.8 |
16 | KW0001 | Gas Hose Assembly |
17 | KW0002 | Control Cable Assembly Coupled with Plug |
Note: * denotes standard build.
As a China-based welding copper air cooled welding torch manufacturer and supplier, North offers a broad range of products that includes air cooled MIG welding gun, air cooled welding torch (self insulated nozzles), push pull MIG gun, and more.
