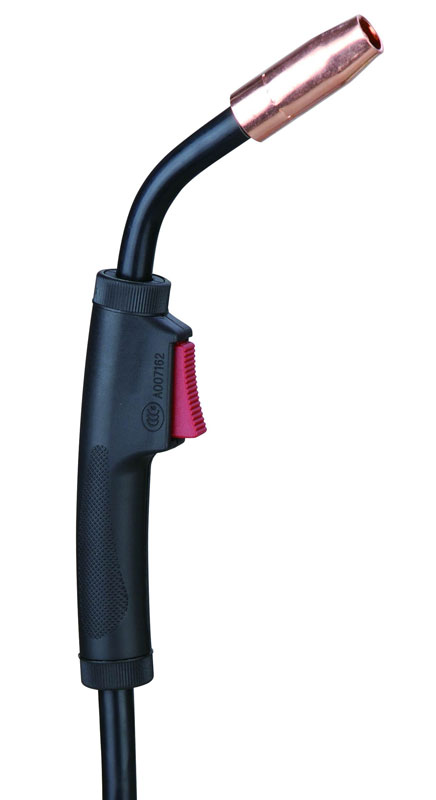

Technical Parameters
Model | NT1 |
Rated Current | CO₂ | 180A |
Mixed Gas | 125A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 0.023-0.045 inch (0.6-1.2mm) |
Model
Description | Part No. |
10ft | 12ft | 15ft |
Welding Torch Coupled with Euro Fitting﹡ | NT1-10E | NT1-12E | NT1-15E |
Welding Torch Coupled with Tweco Fitting | NT1-10T | NT1-12T | NT1-15T |
Welding Torch Coupled with Lincoln Fitting | NT1-10L | NT1-12L | NT1-15L |
Welding Torch Coupled with Miller Fitting | NT1-10M | NT1-12M | NT1-15M |
Nozzle
No. | Part No. | Description |
A | 21-37 | Self Insulated Nozzle |
21-50﹡ |
21-62 |
21-37F |
21-50F |
21-62F |
B | LA8201 |
Contact Tip
No. | Part No. | Description |
C | 11-23 | 0.023 inch/0.6mm Ecu |
11-30﹡ | 0.030inch/0.8mm Ecu |
11-35 | 0.035inch/0.9mm Ecu |
11-40 | 0.040inch/1.0mm Ecu |
11-45 | 0.045inch/1.2mm Ecu |
Liner
No. | Part No. | Description |
D | 42-3035-15 | Steel Liner 0.030-0.035 inch / 0.8-0.9mm×15ft |
42T-3035-15 | Teflon Liner 0.030-0.035inch / 0.8-0.9mm×15ft |

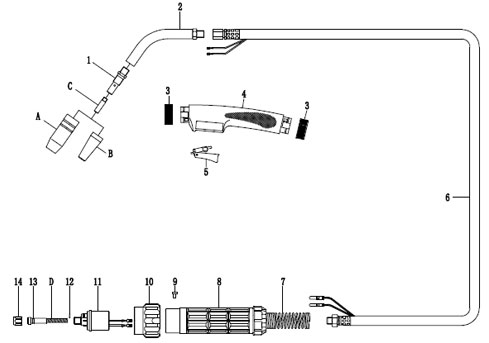

Component
No. | Part No. | Description |
1 | 51 | Gas Diffuser |
2 | 61-45 | Conduct Tube 45° |
61-55﹡ | Conduct Tube 55° |
3 | EH1111 | Locking Nut |
4 | EH1101 | Handle |
5 | EJ0003 | Trigger |
6 | TEL1010 | Cable Assembly 10 ft |
TEL1012 | Cable Assembly 12 ft |
TEL1015 | Cable Assembly 15 ft |
7 | ES2201 | Back Spring Cable Support |
8 | EH2201 | Torch Plug Housing |
9 | EH2211 | Screw M4×6 |
10 | EP2001 | Torch Plug Nut |
11 | TEU1001 | Tweco Euro Torch Plug |
12 | Q504010 | O Ring 4×1 |
13 | Q504018 | O Ring 4×1.8 |
14 | TEU1011 | Nut M11×1 |
Note: * denotes standard build.
