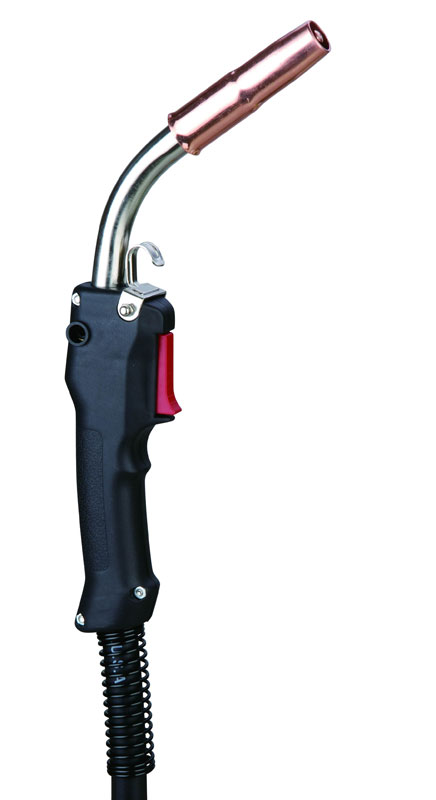

Technical Parameters
Model | NT4 |
Rated Current | CO₂ | 400A |
Mixed Gas | 350A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 0.030- 5/64 inch (0.8-2.0mm) |
Model
Description | Part No. |
10ft | 12ft | 15ft |
Welding Torch Coupled with Euro Fitting * | NT4-10E | NT4-12E | NT4-15E |
Welding Torch Coupled with Tweco Fitting | NT4-10T | NT4-12T | NT4-15T |
Welding Torch Coupled with Lincoln Fitting | NT4-10L | NT4-12L | NT4-15L |
Welding Torch Coupled with Miller Fitting | NT4-10M | NT4-12M | NT4-15M |

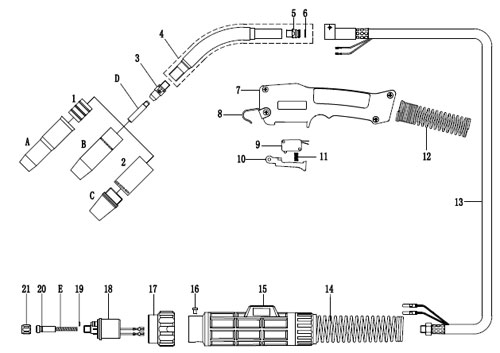

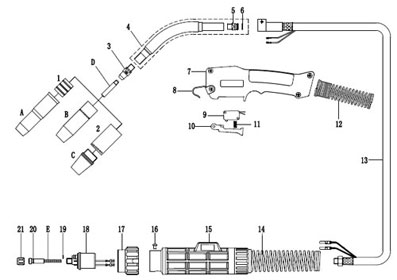

Nozzle
No. | Part No. | Description |
A | 24A50 | Adjustable |
24A62 * |
24A75 |
24AH50 | Heavy Duty |
24AH62 |
24AH75 |
B | 23-50 | Self Insulated |
23-62 |
23-75 |
C | 24CT50S | Fixed Coarse Thread |
24CT62S |
24CT75S |
Contact Tip
No. | Part No. | Description |
D | 14-35 | 0.035 inch / 0.9mm Ecu |
14-45 | 0.045 inch / 1.2mm Ecu |
14-52 | 0.052 inch / 1.3mm Ecu |
14-116 | 1/16 inch / 1.6mm Ecu |
14H-35 | 0.035 inch / 0.9mm Ecu HD |
14H-45 * | 0.045 inch / 1.2mm Ecu HD |
14H-52 | 0.052 inch / 1.3mm Ecu HD |
14H-116 | 1/16 inch / 1.6mm Ecu HD |
14H-564 | 5/64 inch / 2.0mm Ecu HD |
Liner
No. | Part No. | Description |
E | 44-3045-15 | Steel Liner 0.035 -0.045 inch / 0.8-0.9mm × 15ft |
44-116-15 * | Steel Liner 1/16 inch / 1.6mm × 15ft |
44-584-15 | Steel Liner 5/64 inch / 2.0mm × 15ft |
44T-3545-15 | Teflon Liner 0.035 -0.045 inch / 0.9-1.2mm × 15ft |
44T-116-15 | Teflon Liner 1/16 inch / 1.6mm × 15ft |
Component
No. | Part No. | Description |
1 | 34A | Adjustable Nozzle Insulator |
2 | 34CT | Insulator Coarse Thread Nozzle |
3 | 54A | Gas Diffuser |
4 | 64A45J | Jacketed Conductor Tube 45° |
64A60J * | Jacketed Conductor Tube 60° |
64A45 | Conductor Tube 45° |
64A60 | Conductor Tube 60° |
5 | TEF2212 | Gas Nipple |
6 | Q508015S | O Ring 8×1.5 |
7 | TEH2101 | Handle |
8 | TEG2001 | Hanger Hook |
9 | Q711 | Switch, OMRON |
10 | KJ3003 | Trigger |
11 | Q60512 | Trigger Spring |
12 | KS3101 | Front Spring Cable Support |
13 | TEL4010 | Cable Assembly 10ft |
TEL4012 | Cable Assembly 12ft |
TEL4015 | Cable Assembly 15ft |
14 | SS5202 | Back Spring Cable Support |
15 | SH5201 | Torch Plug Housing |
16 | EH2211 | Screw M4X6 |
17 | EP3001 | Torch Plug Nut |
18 | TEU4001 | Tweco Euro Torch Plug |
19 | Q504010 | O Ring 4×1 |
20 | Q504018 | O Ring 4×1.8 |
21 | TEU1011 | Nut M11×1 |
Note: * denotes standard build.
North is a professional welding copper air cooled MAG welding gun manufacturer in China. We provide a broad range of products, including air cooling MIG/MAG welding torch, 350A mixed gas air cooled welding gun, manual welding positioner, and more.
