Technical Parameters
| Model | NT2 |
| Rated Current | CO₂ | 200A |
| Mixed Gas | 150A |
| Duty Cycle | 60% |
| Diameter of Applicable Welding Wire | 0.023-0.045 inch (0.6-1.2mm) |
Model
| Description | Part No. |
| 10ft | 12ft | 15ft |
| Welding Torch Coupled with Euro Fitting * | NT2-10E | NT2-12E | NT2-15E |
| Welding Torch Coupled with Tweco Fitting | NT2-10T | NT2-12T | NT2-15T |
| Welding Torch Coupled with Lincoln Fitting | NT2-10L | NT2-12L | NT2-15L |
| Welding Torch Coupled with Miller Fitting | NT2-10M | NT2-12M | NT2-15M |
Nozzle
| No. | Part No. | Description |
| A | 22-50 * | Adjustable |
| 22-62 |
| B | 22-50F | Self Insulated |
| C | 24CT50S | Fixed Coarse Thread |
| 24CT62S |
| 24CT75S |
| D | 23-60 | Self Insulated |
| 23-62 |
| 23-76 |
| E | 24A50 | Adjustable |
| 24A62 |
| 24A75 |
Contact Tip
| No. | Part No. | Description |
| F | 14-23 | 0.023 inch / 0.6mm Ecu |
| 14-30 | 0.030 inch / 0.8mm Ecu |
| 14-35 * | 0.035 inch / 0.9mm Ecu |
| 14-40 | 0.040 inch / 1.0mm Ecu |
| 14-45 | 0.045 inch / 1.2mm Ecu |
| 14H-35 | 0.035 inch / 0.9mm Ecu HD |
| 14H-40 | 0.040 inch / 1.0mm Ecu HD |
| 14H-45 | 0.045 inch / 1.2mm Ecu HD |
Liner
| No. | Part No. | Description |
| G | 42-3015-15 | Steel Liner 0.030-0.035 inch / 0.8-0.9mm×15ft |
| 42-4045-15 * | Steel Liner 0.040-0.045 inch / 1.0-1.2mm×15ft |
| 42T-3545-15 | Teflon Liner 0.035-0.045 inch / 0.9-1.2mm×15ft |

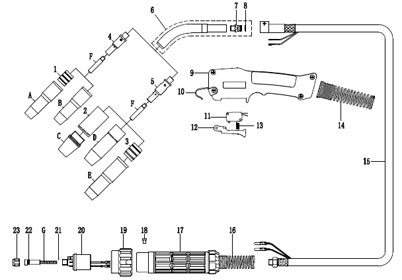

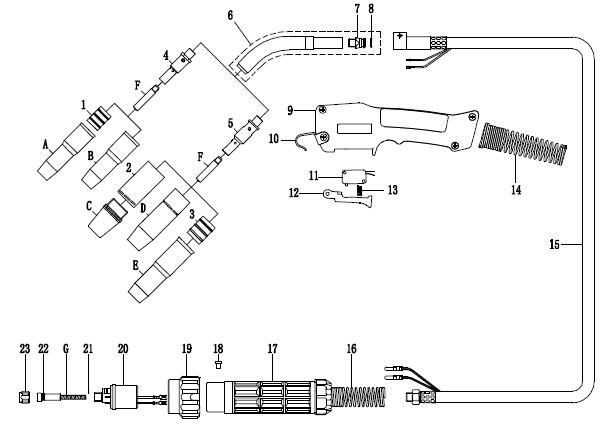

Component
| No. | Part No. | Description |
| 1 | 32 | Adjustable Nozzle Insulator |
| 2 | 34CT | Insulator Coarse Thread Nozzle |
| 3 | 34A | Adjustable Nozzle Insulator |
| 4 | 52 | Gas Diffuser |
| 5 | 52FN | Gas Diffuser |
| 6 | 62A45J | Jacketed Conductor Tube 45° |
| 62A60J * | Jacketed Conductor Tube 60° |
| 62A45 | Conductor Tube 45° |
| 62A60 | Conductor Tube 60° |
| 7 | TEF2212 | Gas Nipple |
| 8 | Q508015S | O Ring 8×1.5 |
| 9 | TEH2101 | Handle |
| 10 | TEG2001 | Hanger Hook |
| 11 | Q711 | Switch, OMRON |
| 12 | KJ3003 | Trigger |
| 13 | Q60512 | Trigger Spring |
| 14 | HS2101 | Front Spring Cable Support |
| 15 | TEL2010 | Cable Assembly 10ft |
| TEL2012 | Cable Assembly 12ft |
| TEL2015 | Cable Assembly 15ft |
| 16 | ES2201 | Back Spring Cable Support |
| 17 | EH2201 | Torch Plug Housing |
| 18 | EH2211 | Screw M4×6 |
| 19 | EP3001 | Torch Plug Nut |
| 20 | TEU1001 | Tweco Euro Torch Plug |
| 21 | Q504010 | O Ring 4×1 |
| 22 | Q504018 | O Ring 4×1.8 |
| 23 | TEU1011 | Nut M11×1 |
Note: * denotes standard build.
As a China-based air cooled MIG welding gun manufacturer and supplier, our company also offers water cooled MAG/MIG gun, gas metal arc welding torch, MIG spool gun, electric drive welding positioner, and much more.
Related Names:
Nature Cooled Wire Pushing Welding Tool | Convection Cooled Gas Protection Welding Pistol | Natural-cooled Wire Torch | Convection-cool Pushing-wire Torch
