Technical Parameters
Model | N24 |
Rated Current | CO₂ | 250A |
Mixed Gas | 220A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 0.8-1.2mm |
Model
Push Wire Welding Gun Coupled with Euro Fitting | N24-3 | 3m |
N24-4 | 4m |
N24-5 | 5m |
Nozzle
No. | Part No. | Description |
A | EA2210 | 10mm |
EA22125* | 12.50mm |
EA2117 | 17mm |
Contact Tip
No. | Part No. | Description |
B | EB2208 | 0.8mm M6×8×28 Ecu |
EB2210* | 1.0mm M6×8×28 Ecu |
EB2212 | 1.2mm M6×8×28 Ecu |
EB2208L | 0.8mm M6×8×28 CuCrZr |
EB2210L | 1.0mm M6×8×28 CuCrZr |
EB2212L | 1.2mm M6×8×28 CuCrZr |
Liner
No. | Part No. | Description |
D | ER2210-3 | Steel Liner 0.8-1.0mm×3m |
ER3212-3* | Steel Liner 1.0-1.2mm×3m |
ER3312-3 | Teflon Liner 1.0-1.2mm×3m |

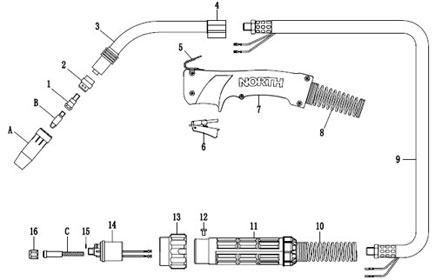

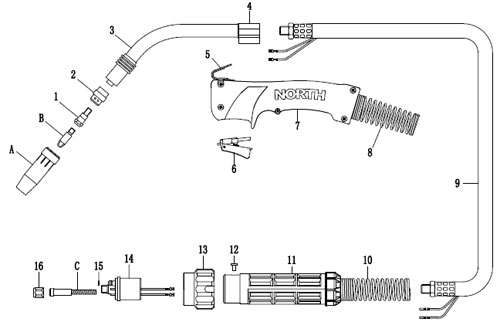

Component
No. | Part No. | Description |
1 | EC2001 | Contact Tip Socket |
2 | ED2001* | Diffuser, Ceramics |
ED2002 | Diffuser, Silica Gel |
3 | EF2250 | 50° Gun Neck |
4 | EF1212 | Plastic Body |
5 | EG0001 | Hanger Hook |
6 | EJ0003 | Trigger |
7 | EH0101 | Handle |
8 | ES0101 | Front Spring Cable Support |
9 | EL2030 | Cable Assembly 3m |
10 | ES2201 | Back Spring Cable Support |
11 | EH2201 | Back Handle |
12 | EH2211 | Screw M4×6 |
13 | EP2001 | Torch Plug Nut |
14 | EU1001 | Euro Torch Plug |
15 | Q504010 | O Ring 4×1 |
16 | Q503515 | O Ring 3.5×1.5 |
17 | EU1011 | Nut M10×1 |
Note: * denotes standard build.
