Technical Parameters
| Model | N36 |
| Rated Current | CO2 | 340A |
| Mixed Gas | 300A |
| Duty Cycle | 60% |
| Diameter of Applicable Welding Wire | 0.8-1.6mm |
Model
| Welding Gun Coupled with Euro Fitting | N36-3 | 3m |
| N36-4 | 4m |
| N36-5 | 5m |
Nozzle
| No. | Part No. | Description |
| A | EA3212 | Nozzle12mm |
| EA3216* | Nozzle 16mm |
| EA3317 | Tapered Nozzle 17mm |
| EA3119 | Nozzle 19mm |
Contact Tip
| No. | Part No. | Description |
| B | EB3210* | 1.0mm M8×10×30 Ecu |
| EB3212 | 1.2mm M8×10×30 Ecu |
| EB3216 | 1.6mm M8×10×30 Ecu |
| EB3210L | 1.0mm M8×10×30 CuCrZr |
| EB3212L | 1.2mm M8×10×30 CuCrZr |
| EB3216L | 1.6mm M8×10×30 CuCrZr |
| C | EB2208 | 0.8mm M6×8×28 Ecu |
| EB2210 | 1.0mm M6×8×28 Ecu |
| EB2212 | 1.2mm M6×8×28 Ecu |
| EB2208L | 0.8mm M6×8×28 CuCrZr |
| EB2210L | 1.0mm M6×8×28 CuCrZr |
| EB2212L | 1.2mm M6×8×28 CuCrZr |
Liner
| No. | Part No. | Description |
| D | ER3212-3 | Steel Liner 1.0-1.2mm×3m |
| ER5216-3 | Steel Liner 1.2-1.6mm×3m |
| ER3312-3 | Teflon Liner 1.0-1.2mm×3m |
| ER5316-3 | Teflon Liner 1.2-1.6mm×3m |

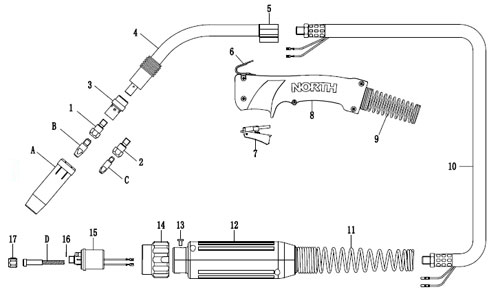

Component
| No. | Part No. | Description |
| 1 | EC3001 | Contact Tip Socket M8×28 |
| EC3002 | Contact Tip Socket M8×32 |
| 2 | EC3003 | Contact Tip Socket M6×28 |
| EC3004 | Contact Tip Socket M6×32 |
| 3 | ED3001 | Diffuser, Ceramics |
| ED3002 | Diffuser, Silica Gel |
| 4 | EF3250 | 50° Gun Neck |
| 5 | EF1212 | Plastic Body |
| 6 | EG0001 | Hanger Hook |
| 7 | EJ0003 | Trigger |
| 8 | EH0101 | Handle |
| 9 | ES0101 | Front Spring Cable Support |
| 10 | EL3030 | Cable Assembly 3m |
| 11 | ES3201 | Back Spring Cable Support |
| 12 | EH2201 | Back Handle |
| 13 | EH2211 | Screw M4×6 |
| 14 | EP3001 | Torch Plug Nut |
| 15 | EU3001 | Euro Torch Plug |
| 16 | Q504010 | O Ring 4×1 |
| 17 | Q503515 | O Ring 3.5×1.5 |
| 18 | EU1011 | Nut M10×1 |
Note: * denotes standard build.
North is an experienced air cooling MIG/MAG gun manufacturer and supplier in China. Apart from wire feed welding gun / welding torch, we also offer push pull gun, spool gun, welding rotators, light duty welding positioner, and more.
