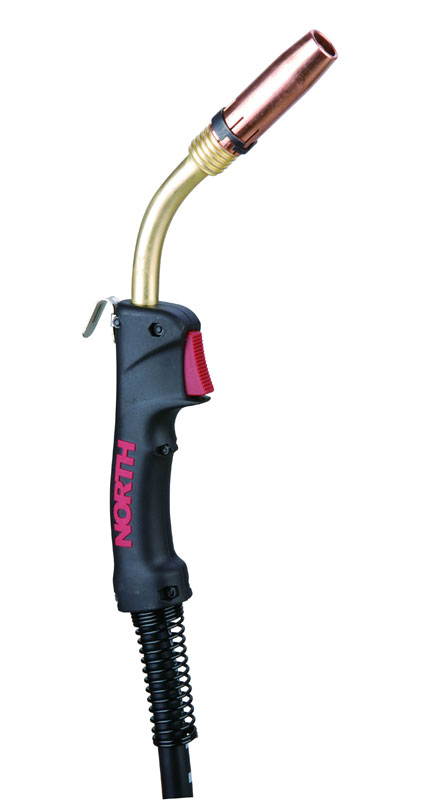

N26 Welding Copper Air Cooling Welding Gun

Home » Products » Wire Feed Welding Gun/ Welding Torch » European Type Welding Gun » N26 Welding Copper Air Cooling Welding Gun
N26 Welding Copper Air Cooling Welding Gun
Technical Parameters
ModelN26
Rated CurrentCO₂290A
Mixed Gas260A
Duty Cycle60%
Diameter of Applicable Welding Wire0.8-1.2mm
Model
Welding Gun Coupled with Euro FittingN26-33m
N26-44m
N26-55m
Nozzle
No.Part No.Description
ASA5214Nozzle 14mm
SA5216 *Nozzle 16mm
SA5315Tapered Nozzle 15mm
SA5120Nozzle 20mm
Contact Tip
No.Part No.Description
BEB22080.8mm M6×8×28 Ecu
EB2210 * 1.0mm M6×8×28 Ecu
EB22121.2mm M6×8×28 Ecu
EB2208L0.8mm M6×8×28 CuCrZr
EB2210L1.0mm M6×8×28 CuCrZr
EB2212L1.2mm M6×8×28 CuCrZr
CEB32101.0mm M8×10×30 Ecu
EB32121.2mm M8×10×30 Ecu
EB3210L1.0mm M8×10×30 CuCrZr
EB3212L1.2mm M8×10×30 CuCrZr
Liner
No.Part No.Description
DER2210-3Steel Liner 0.8-1.0mm×3m
ER3212-3 *Steel Liner 1.0-1.2mm×3m
ER2310-3Teflon Liner 0.8-1.0mm×3m
ER3312-3Teflon Liner 1.0-1.2mm×3m

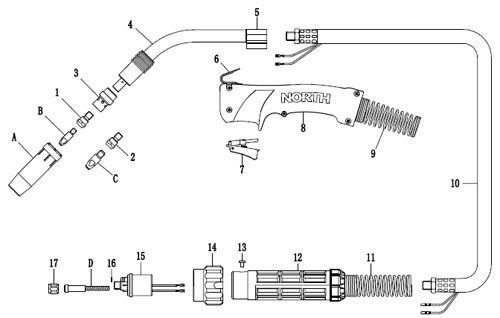

Component
No.Part No.Description
1EC8001 *Contact Tip Socket M6×22
2EC8002Contact Tip Socket M8×22
3ED8001 Diffuser, Ceramic
4EF825050° Gun Neck
5EF1212Plastic Body
6EG0001Hanger Hook
7EJ0003Trigger
8EH0101Handle
9ES0101Front Spring Cable Support
10EL8030Cable Assembly 3m
11ES3201Back Spring Cable Support
12EH2201Back Handle
13EH2211Screw M4×6
14EP3001Torch Plug Nut
15EU1001Euro Torch Plug
16Q504010O Ring 4×1
17EU1011Nut M10×1

Note: * denotes standard build.

As a China-based welding copper air cooling welding gun manufacturer and supplier, we also offer air cooling MIG/MAG welding torch, 120° tilting turntable positioner, tank turning roll, push pull MIG gun, and more.
