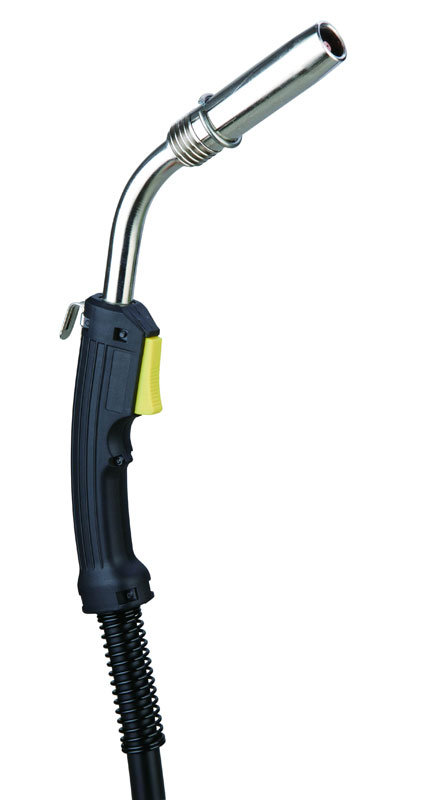

Technical Parameters
| Model | N40 |
| Rated Current | CO₂ | 350A |
| Mixed Gas | 320A |
| Duty Cycle | 35% |
| Diameter of Applicable Welding Wire | 1.0-2.4mm |
Model
| Welding Gun Coupled with Euro Fitting | N40-3 | 3m |
| N40-4 | 4m |
| N40-5 | 5m |
Nozzle
| No. | Part No. | Description |
| A | EA4214 | 14mm |
| EA4218 * | 18mm |
| EA4221 | 21mm |
Contact Tip
| No. | Part No. | Description |
| B | EB3210 | 1.0mm M8×10×30 Ecu |
| EB3212 * | 1.2mm M8×10×30 Ecu |
| EB3216 | 1.6mm M8×10×30 Ecu |
| EB3210L | 1.0mm M8×10×30 CuCrZr |
| EB3212L | 1.2mm M8×10×30 CuCrZr |
| EB3216L | 1.6mm M8×10×30 CuCrZr |
Liner
| No. | Part No. | Description |
| C | ER3212-3 | Steel Liner 1.0-1.2mm×3m |
| ER5216-3 * | Steel Liner 1.2-1.6mm×3m |
| ER3312-3 | Teflon Liner 1.0-1.2mm×3m |
| ER5316-3 | Teflon Liner 1.2-1.6mm×3m |

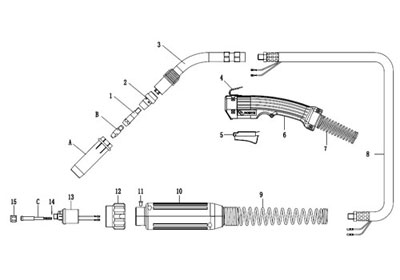

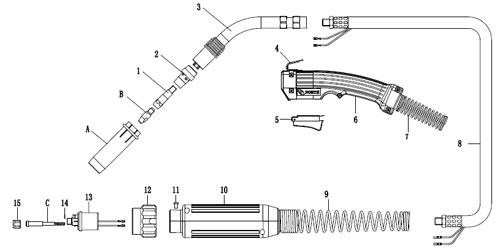

Component
| No. | Part No. | Description |
| 1 | EC4001 | Contact Tip Socket M8×43 |
| 2 | ED4001 | Diffuser, Ceramic |
| 3 | EF4245 | 45° Torch Neck |
| 4 | EG0002 | Hanger Hook |
| 5 | BEJ2005 | Trigger |
| 6 | BEH2101 | Handle |
| 7 | KS3101 | Front Spring Cable Support |
| 8 | EL4030 | Cable Assembly 3m |
| 9 | HDS0202 | Back Spring Cable Support |
| 10 | HDH0202 | Back Handle |
| 11 | EH2211 | Screw M4×6 |
| 12 | EP3001 | Torch Plug Nut |
| 13 | EU1001 | Euro Torch Plug |
| 14 | Q504010 | O Ring 4×1 |
| 15 | EU1011 | Nut M10×1 |
Note: * denotes standard build.
North is a professional gas metal arc welding gun manufacturer and supplier in China. We offer a wide range of products, including heavy duty nozzle MIG/MAG welding gun, gas metal arc welding torch, electric drive welding positioner, and more.
