Technical Parameters
Model | N25 |
Rated Current | CO₂ | 230A |
Mixed Gas | 200A |
Duty Cycle | 60% |
Diameter of Applicable Welding Wire | 0.8-1.2mm |
Nozzle
No. | Part No. | Description |
A | EA72115 | 11.50mm |
EA7215* | 15mm |
EA7218 | 18mm |
Contact Tip
No. | Part No. | Description |
B | EB2208 | 0.8mm M6×8×28 Ecu |
EB2210* | 1.0mm M6×8×28 Ecu |
EB2212 | 1.2mm M6×8×28 Ecu |
EB2208L | 0.8mm M6×8×28 CuCrZr |
EB2210L | 1.0mm M6×8×28 CuCrZr |
EB2212L | 1.2mm M6×8×28 CuCrZr |
Liner
No. | Part No. | Description |
D | ER2210-3 | Steel Liner 0.8-1.0mm×3m |
ER3212-3* | Steel Liner 1.0-1.2mm×3m |
ER2310-3 | Teflon Liner 0.8-1.0mm×3m |
ER3312-3 | Teflon Liner 1.0-1.2mm×3m |

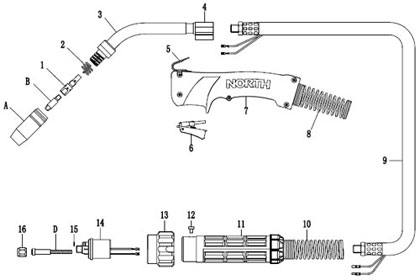

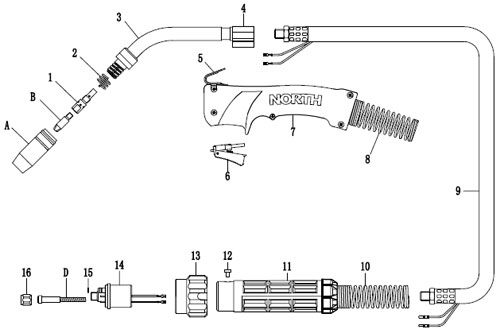

Component
No. | Part No. | Description |
1 | EC7001* | Contact Tip Socket M6×35 |
EC7002 | Contact Tip Socket M6×37 |
2 | EF7211 | Nozzle Spring |
3 | EF7245 | 45° Gun Neck |
4 | EF1212 | Plastic Body |
5 | EG0001 | Hanger Hook |
6 | EJ0003 | Trigger |
7 | EH0101 | Handle |
8 | ES0101 | Front Spring Cable Support |
9 | EL7030 | Cable Assembly 3m |
10 | ES2201 | Back Spring Cable Support |
11 | EH2201 | Back Handle |
12 | EH2211 | Screw M4×6 |
13 | EP2001 | Torch Plug Nut |
14 | EU1001 | Euro Torch Plug |
15 | Q504010 | O Ring 4×1 |
16 | Q503515 | O Ring 3.5×1.5 |
17 | EU1011 | Nut M10×1 |
Note: * denotes standard build.
As a specialized MAG/MIG welding gun manufacturer and supplier in China, our company also provides gas metal arc welding torch, MAG spool gun, push pull MAG gun, motor drive welding positioner, and much more.
